SC-22T

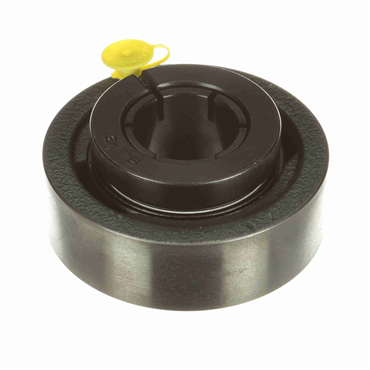

705411 / Gold Line Ball Bearing

Item #101180053

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron cylindrical O.D. housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry & dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation

Specifications

Radial Static Load Capacity (lb)	3493
Bearing Insert Coating	Black Oxide
Collar O.D.	0.625 in
Insert Material	52100 Bearing Steel, Black Oxided
Speed [Max]	6500 rpm
Internal Clearance	Standard
Inner Race Heat Treat Method	Zone-Hardened
Bore Size	1.375 in
Duty Series	Standard
Misalignment Type	Static Only
Angle of Misalignment	±2°
Bore Size - Inch	1.375
Bearing Design	Non-Expansion
Housing Material	Cast Iron
Inch/Metric	Inch
O.D.	3.875 in
Overall Width (in)	1.75
Centerline to Front Face (in)	1.063
Locking Type	Concentric
Radial Dynamic Load Capacity	5782 lb
Inner Race Length	1.75 in
Series	SC-T
Duty	Standard-Duty
Inner Race Length (in)	1.75
Insert No.	2-16T
Operating Temperature [Max]	220 °F
Relubricatable	Yes
Collar OD (in)	0.625
Cartridge Width	1.22 in
Housing Color	Gray
Replaceable Insert	Yes
Housing Construction	One Piece
Bore Shape	Straight
Overall Width	1.75 in
Shaft Dia.	1.375 in
Radial Dynamic Load Capacity (lb)	5782
Centerline to Front Face	1.063 in
Expansion	No
Locking Device	Setscrew Locking
Maximum Operating Temperature	220
Housing Type	Cylindrical Cartridge
Seal Type	Felt Labyrinth
Outer Ring Land Profile	Standard
Lubrication	Lithium Complex NLGI 2 Grease
Measure Units	Inch
Bearing Type	Ball Bearing
Retainer Type	Land Riding
Cartridge Width (in)	1.219
Outer Diameter (in)	3.875
End Cap	No
Weight	3.2 LB
EAN or UPC	662461029831
