SCHB-51

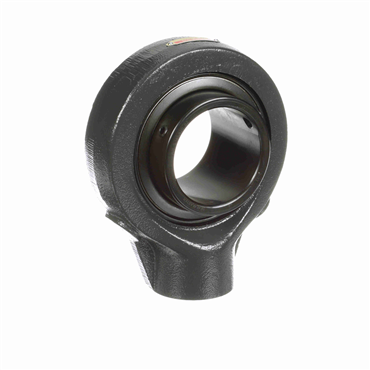

SCHB Series Hanger Bearing For Screw Conveyors

Item #101180184

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Felt labyrinth seal and flinger for dry & dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation

Specifications

Speed [Max]	2250 rpm
Thread Depth	1.25 in
Thread Depth (in)	1.25
Relubricatable	Yes
End Cap	No
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Overall Width	6.875 in
Measure Units	Inch
Thread Size	1 1/2 - 11 1/2
Seal Type	Felt Labyrinth
Replaceable Insert	Yes
Hanger Type	Screw Conveyor Type
Insert Material	52100 Bearing Steel, Black Oxided
Overall Height (in)	8.313
Centerline to Front Face (in)	1.938
Housing Material	Cast Iron
Locking Device	Setscrew Locking Collar
Internal Clearance	Standard
Duty Type	Standard
Misalignment Type	Static Only
Shaft Dia.	3.1875 in
Insert No.	2-33
Bore Size - Inch	3.188
Retainer Type	Land Riding
Shaft Height (in)	3.4375
Lubrication	Lithium Complex NLGI 2 Grease
Bore Shape	Straight
Pipe Tap** N.P.S.M.	1 1/2 - 11 1/2
Outer Ring Land Profile	Standard
Inner Ring OD (in)	3.922
Inner Race Length (in)	3.25
Overall Width (in)	6.875
Base to Center Height (in)	4.875
Duty Series	Standard
Expansion	No
Base Width (in)	2.813
Series	CSCHB
Maximum Operating Temperature	220
Weight	16.5 LB
EAN or UPC	662461002940
