ST-16T

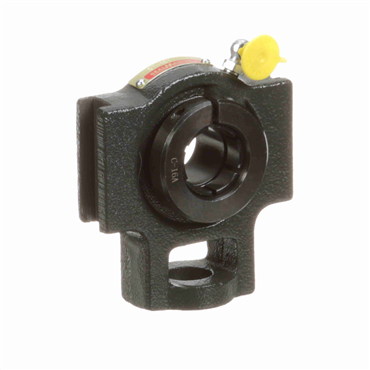

714480 / Gold Line Ball Bearing

Item #101181036

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation

Specifications

Replaceable Insert	Yes
Internal Clearance	Standard
Bore Shape	Straight
Bore Size	1 in
Bearing Insert Coating	Black Oxide
Expansion	No
Measure Units	Inch
Centerline to Front Face	0.875 in
Relubricatable	Yes
Inch/Metric	Inch
Bore Size - Inch	1
Insert Material	52100 Bearing Steel, Black Oxided
Speed [Max]	9000 rpm
Radial Dynamic Load Capacity (lb)	2801
Lubrication	Lithium Complex NLGI 2 Grease
Collar O.D.	1.938 in
Collar OD (in)	1.938
Operating Temperature [Max]	220 °F
Outer Ring Land Profile	Standard
Duty Series	Standard
End Cap	No
Housing Width	1.5 in
Overall Height (in)	3.5
Platform	Gold Line Ball Bearing
Angle of Misalignment	±2°
Insert No.	2-1T
Overall Length	3.813 in
Overall Width	1.375 in
Housing Width (in)	1.5
Housing Material	Cast Iron
Slot Width (in)	0.5313
Misalignment Type	Static Only
Inner Race Heat Treat Method	Zone-Hardened
Overall Length (in)	3.8125
Series	ST
Retainer Type	Land Riding
Seal Type	Felt Labyrinth
Housing Bolt Through Hole (in)	0.75
Locking Type	Concentric
Frame Type	Center Pull Wide Slot
Overall Height	3.5 in
Radial Dynamic Load Capacity	2801 lb
Overall Width (in)	1.375
Housing Bolt Through Hole	0.75 in
Slot Spacing	3.5
Centerline to Front Face (in)	0.875
Maximum Operating Temperature	220
Housing Construction	One Piece
Bearing Type	Ball Bearing
Weight	2.8 LB
EAN or UPC	662461074572
