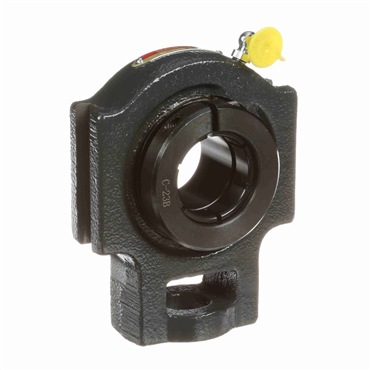

ST-23TC

705912 / Gold Line Ball Bearing

Item #101181059

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin & dimple for direct lubrication and anti-rotation

Specifications

Radial Dynamic Load Capacity (lb)	5782
Expansion	No
Housing Material	Cast Iron
Collar OD (in)	2.563
Centerline to Front Face	1.063 in
Maximum Operating Temperature	220
Slot Width (in)	0.5313
Duty Series	Standard
Misalignment Type	Static Only
Insert Material	52100 Bearing Steel, Black Oxided
Operating Temperature [Max]	220 °F
Collar O.D.	2.563 in
Platform	Gold Line Ball Bearing
Centerline to Front Face (in)	1.063
Retainer Type	Land Riding
Relubricatable	Yes
Overall Width (in)	1.6875
Inner Race Heat Treat Method	Zone-Hardened
Housing Bolt Through Hole	0.875 in
Overall Length (in)	5.0625
Speed [Max]	4650 rpm
Radial Dynamic Load Capacity	5782 lb
Bearing Type	Ball Bearing
Insert No.	2-17TC
Frame Type	Center Pull Wide Slot
Measure Units	Inch
Overall Length	5.063 in
Inch/Metric	Inch
Locking Type	Concentric
Bore Size	1.438 in
Overall Width	1.688 in
Bore Shape	Straight
Internal Clearance	Standard
Lubrication	Lithium Complex NLGI 2 Grease
Slot Spacing	4
Outer Ring Land Profile	Standard
Angle of Misalignment	±2°
Housing Width (in)	1.75
Series	ST
Housing Construction	One Piece
Bore Size - Inch	1.438
Replaceable Insert	Yes
Seal Type	Single Lip Contact
Overall Height (in)	4
Housing Bolt Through Hole (in)	0.875
Bearing Insert Coating	Black Oxide
Housing Width	1.75 in
Overall Height	4 in
End Cap	No
Weight	4.2 LB
EAN or UPC	662461033913
