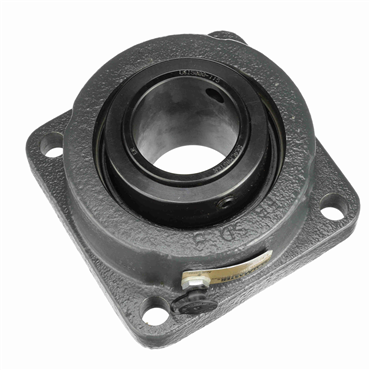

USFB5000-115

SUPERSEDED TO LB_FB22431H, MTRL - 100738963

Item #101014871

Auto Replenish

each One-time purchase

Product Details

Wide race and rollers and steel cage for high dynamic load ratings
Race-mounted felt seal with flinger and misalignment sealing
Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
Powder coat epoxy cast iron housing

Specifications

Flange Type	4-Bolt Flange
Housing Length	5 3/16 in
Overall Width	5.188 in
Expansion	No
Overall Depth	2.91 in
Seal Type	Felt Labyrinth
Shaft Dia.	1.9375 in
Retainer Material	Steel
Overall Height	2.906 in
Housing Color	Gray
Housing Material	Cast Iron
End Type	Open End
Bearing Type	Spherical Roller
Internal Clearance	Standard
Bolt Size	0.5 in
Temperature Range [Max]	250 °F
Inner Race Length	2.875 in
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Series	USFB5000
Pilot Configuration	No Pilot
Duty Series	Standard
Bearing Insert Coating	Black Oxide
Bolt Hole Type	Round
Bolt Center-to-Center Length	4.063 in
Collar O.D.	3 in
Overall Height to Inner Ring	2.906 in
Overall Length	5.188 in
Seal Flinger	Yes
Inch/Metric	Inch
Relubricatable	Yes
Bore Size	1.938 in
Bolt Center Dia.	5.75 in
Misalignment Type	Dynamic
Insert Material	52100 Bearing Steel, Black Oxided
Operating Temperature [Max]	220 °F
Bore Shape	Straight
Locking Type	Collar Mount
Bolt Circle Dia.	5 3/4 in
Locking Device	Collar Mount
Bearing Design	Non-Expansion
Housing Width	5.188 in
Flange Thickness	3/4 in
Lubrication	Lithium Complex NLGI 2 Grease
Foot Height	0.75 in
End Cap	No
Bolt Hole Size Dimension	1/2 in
Speed [Max]	4000 rpm
Radial Dynamic Load Capacity	23520 lb
Angle of Misalignment	±2°
Replaceable Insert	No
Bolt Hole Spacing	4 1/16 in
Retainer Type	Metal
Weight	9.115 LB
EAN or UPC	662461361122
