USFBE5000-115

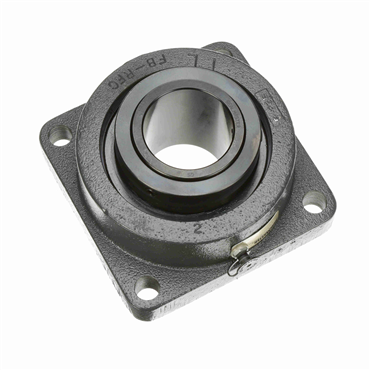

Ductile Iron 4-Bolt Flange Collar Mount Lock Standard Duty Flange Unit

Item #101015237

Auto Replenish

each One-time purchase

Product Details

Wide race and rollers and steel cage for high dynamic load ratings
Race-mounted felt seal with flinger and misalignment sealing
Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
Powder coat epoxy cast iron housing

Specifications

Expansion	No
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Speed [Max]	4000 rpm
Foot Height	0.875 in
Bolt Circle Dia.	6 3/16 in
Housing Material	Ductile Iron
Inner Race Length	2.875 in
Angle of Misalignment	±2°
Pilot Configuration	No Pilot
Inch/Metric	Inch
Seal Type	Felt Labyrinth
Insert Material	52100 Bearing Steel, Black Oxided
Seal Flinger	Yes
Operating Temperature [Max]	220 °F
Bolt Size	0.5 in
Overall Width	3.188 in
Flange Type	4-Bolt Flange
Mounted Unit Duty	Heavy Duty
Locking Type	Collar Mount
Bearing Insert Coating	Black Oxide
Duty Series	Standard
Series	USFBE5000
Bolt Hole Size Dimension	1/2 in
Bolt Center Dia.	6.188 in
Bearing Type	Spherical Roller
Locking Device	Setscrew Locking Collar
Lubrication	Lithium Complex NLGI 2 Grease
Housing Color	Gray
Replaceable Insert	No
End Cap	No
End Type	Open End
Relubricatable	Yes
Bolt Center-to-Center Length	4.375 in
Collar O.D.	3 in
Flange Thickness	0.875 in
Bore Size	1.938 in
Overall Height	3.188 in
Housing Width	5.5 in
Housing Height	5 1/2 in
Radial Dynamic Load Capacity	23520 lb
Retainer Material	Steel
Overall Length	5.5 in
Temperature Range [Max]	250 °F
Retainer Type	Metal
Misalignment Type	Dynamic
Bearing Design	Non-Expansion
Housing Length	5 1/2 in
Shaft Dia.	1.9375 in
Bolt Hole Spacing	4 3/8 in
Internal Clearance	Standard
Weight	11.55 LB
EAN or UPC	662461365083
