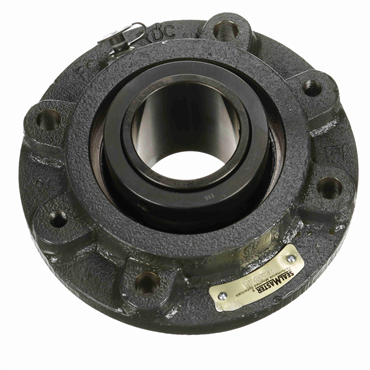

USFCE5000-115

SUPERSEDED TO LB_FCB22431H, MTRL - 100739005

Item #101015267

Auto Replenish

each One-time purchase

Product Details

Wide race and rollers and steel cage for high dynamic load ratings
Race-mounted felt seal with flinger and misalignment sealing
Single-collar interlock with 120° spacing setscrew lock, diamond faceted setscrews
Powder coat epoxy ductile iron housing with Type E dimensions

Specifications

Inch/Metric	Inch
Foot Height	1 in
Radial Dynamic Load Capacity	23520 lb
Insert Material	52100 Bearing Steel, Black Oxided
Overall Length	6.375 in
Bolt Circle Dia.	5 3/8 in
Expansion	No
Temperature Range [Max]	250 °F
End Type	Open End
Locking Type	Collar Mount
Seal Flinger	Yes
Bearing Type	Spherical Roller
Outer Ring Land Profile	Standard
Bolt Size	0.375 in
Housing Color	Gray
Pilot Diameter	4.5 in
Shaft Dia.	1.9375 in
Mounted Unit Duty	Heavy Duty
End Cap	No
Internal Clearance	Standard
Seal Type	Felt Labyrinth
Bolt Hole Spacing	N/A
Flange Type	Piloted Flange
Housing Length	6 3/8 in
Locking Device	Collar Mount
Housing O.D.	6.375 in
Duty Series	Standard
Pilot Depth	1 1/16 in
Bolt Center Dia.	5.375 in
Speed [Max]	4000 rpm
Operating Temperature [Max]	220 °F
Housing Material	Ductile Iron
Series	USFCE5000
Pilot Configuration	No Pilot
Bearing Design	Non-Expansion
Replaceable Insert	No
Angle of Misalignment	±2°
Misalignment Type	Dynamic
Relubricatable	Yes
Centerline to Front Face	1.813 in
Bore Size	1.938 in
Inner Race Length	2.875 in
Overall Width	1.969 in
Bolt Hole Size Dimension	3/8 in
Flange Thickness	1 in
Housing Construction	One Piece
Housing Width	2 7/16 in
Retainer Type	Metal
Bearing Insert Coating	Black Oxide
Collar O.D.	3 in
Retainer Material	Steel
Lubrication	Lithium Complex NLGI 2 Grease
Bore Shape	Straight
Weight	9.561 LB
EAN or UPC	662461365687
