40CONN LK SFSC

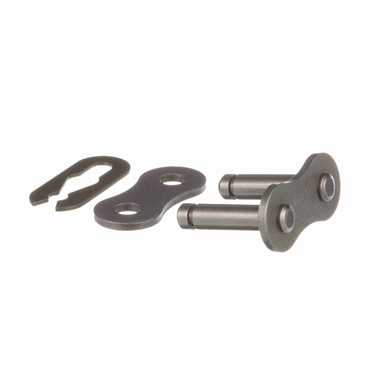

Single Strand ANSI Roller Chain Link

Item #102153753
each
    Shipment Options

Alternate Products

Product details

  • #40
  • 1 Strand
  • Spring Clip, Slip Fit Connecting Link
  • 1/2" Pitch

Specifications

Chain Series 40, 40-2, 40-3, 40-4
Roller Width 0.312 in
Chain Construction Part (CL, Ol, RL)
Link Plates Thickness 0.06 in
Pin Length (Lc) 0.32 in
Duty Standard-Duty
Link Plates Height 0.47 in
Type Connecting (Master) Link
Pin Overall Length 0.682 in
Chain Type ANSI
Link Type Spring Clip, Slip Fit
Material Carbon Steel
Pin Material Carbon Steel
Roller Dia. 0.313 in
Pin Length (Lr) 0.38 in
Chain No. 40
Chain Pitch 1/2 in
Pin Diameter 0.156 in
No. of Strands Across 1
Rated Working Load 810 lb
Weight 0.02 LB
EAN or UPC 6623900532323
