50 2RIV

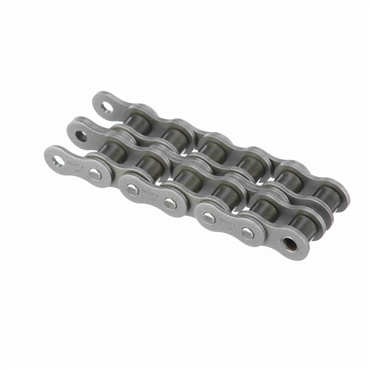

Double Strand ANSI Roller Chain

Item #102178666
Foot
    Shipment Options
  • Pre-Packed QuantitiesPre-Packed Quantities

Alternate Products

Product details

  • # 50
  • 2 Strand
  • Carbon Steel Material
  • Riveted Chain Construction
  • 10 Foot Box

features

  • Made in accordance with ANSI B29.1 standards
  • Designed and built to provide maximum strength and wear life
  • Solid, cold forged bushings
  • Solid rollers
  • Wide waist link plates
  • Anticollapse bushing design

Specifications

Material Carbon Steel
Pin Overall Length 1.583 in
No. of Strands Across 2
Chain Series 50, 50-2, 50-3, 50-4
Package Type 10 Foot Box
Chain Pitch 0.625 in
Side Bow No
Roller Dia. 0.4 in
Chain Construction Riveted
Chain No. 50
Rated Working Load 2380 lbs
Pin Material Carbon Steel
Link Plates Height 0.577 in
Duty Standard-Duty
Pin Diameter 0.2 in
Roller Width 3/8 in
Chain Type ANSI
Link Plates Thickness 0.08 in
Self-Lubricating No
Pins & Rollers Standard, End Softened Pins
Weight 1.34 LB
EAN or UPC 6623900534006
