NSK Corp.
NU213EMC3
CYLINDRICAL ROLLER BEARING NSK Light Cylindrical Roller Bearing, 65 mm Dia Bore, 120 mm OD, 1 Row, 23 mm W, 124000 N Dynamic/119000 N Static Load
Item #101101092
Rollway Bearing Co.
NU213EMC3

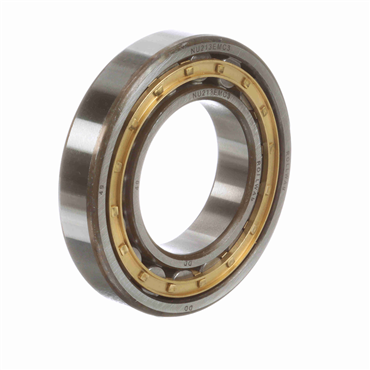

Unsealed Straight Bore Radial Cylindrical Roller Bearing
Item #104422553
Koyo Corp.
NU213RC3FY
CYLINDRICAL ROLLER BEARINGS CYLINDRICAL - EMR-NU213RC3_FY_P0/00_H_B_K_JP
Item #111297361
- Radial Bearing Type
- 65 mm Inner Diameter
- 120 mm Outer Diameter
- 23 mm Width
features
- Locating bearing
- Can be dismantled
| Inch/Metric | Metric |
| Capacity | High Capacity |
| Dynamic Load Rating | 128000 N |
| No. of Rows | 1 |
| Bearing Design | Removable Inner Ring – Straight |
| Bearing Type | Radial |
| End Type | Open End |
| O.D. | 120 mm |
| Oil Hole | w/o Oil Hole |
| Enclosure | Open |
| Precision Ground | Yes |
| Corner Radius [Min] | 1.5 mm |
| Static Load Rating [Max] | 120000 N |
| Bore Type | Round Bore, Metric Type |
| Cage Type | Caged |
| Rows of Balls | Single |
| I.D. | 65 mm |
| Cage Material | Brass/Bronze |
| Limiting Speed | 9200 rpm |
| Tolerance | Iso Class 0 (RBEC 1) |
| Origin | Cylindrical Radial |
| Radial Internal Clearance Specification | Greater Than Normal Clearance |
| Radial Internal Clearance | C3 |
| Weight | 2.59 LB |
| EAN or UPC | 4012801394109 |
