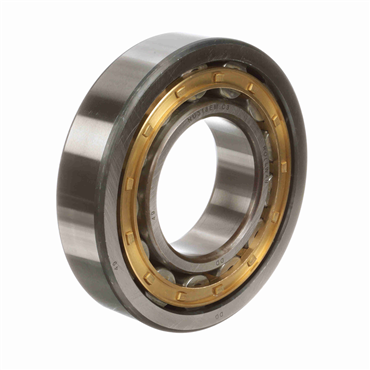

NU318-E-XL-M1-C3

Radial Cylindrical Roller Bearing

Item #100000678
each
    Shipment Options

Alternate Products

Product details

  • Radial Bearing Type
  • 90 mm Inner Diameter
  • 190 mm Outer Diameter
  • 43 mm Width

features

  • Locating bearing
  • Can be dismantled

includes

  • Cage

Specifications

Static Load Rating [Max] 350000 N
Limiting Speed - Oil 3400 rpm
No. of Rows 1
Tolerance Iso Class 0 (RBEC 1)
Cage Material Brass/Bronze
Radial Internal Clearance C3
Corner Radius [Min] 3 mm
Bearing Design Removable Inner Ring – Straight
Cage Type Caged
Dynamic Load Rating 370000 N
Oil Hole w/o Oil Hole
I.D. 90 mm
Capacity High Capacity
O.D. 190 mm
Radial Internal Clearance Specification Greater Than Normal Clearance
Inch/Metric Metric
Bearing Type Radial
Precision Ground Yes
Rows of Balls Single
Limiting Speed - Grease 3400 rpm
End Type Open End
Enclosure Open
Origin Cylindrical Radial
Bore Type Round Bore, Metric Type
Limiting Speed 5500 rpm
Weight 14.34 LB
EAN or UPC 4012801235365
