NATR17

Yoke Type Track Roller

Item #101045778

NATR Series Yoke Type Track Roller With Axial Guidance With Inner Ring, 17 mm ID x 40 mm Crowned OD, 20 mm Roller Width, Needle Bearing, Gap Seals, Steel, With Inner Ring

Auto Replenish

each One-time purchase

Alternate Products

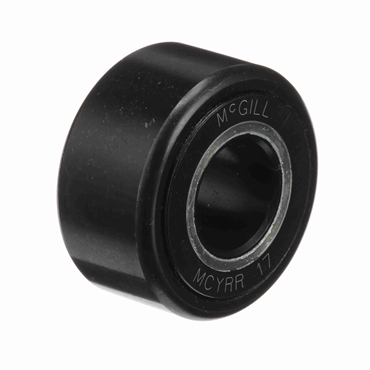

McGill MCYRR 17

CAMROL® Crowned Yoke Mount Unsealed Cam Follower

Item #101088479

each

Compare

Smith Bearing MYR-17

Yoke Type Metric Cam Follower

Item #101653866

each

Compare

Product Details

NATR Series Yoke Type Track Roller With Axial Guidance With Inner Ring, 17 mm ID x 40 mm Crowned OD, 20 mm Roller Width, Needle Bearing, Gap Seals, Steel, With Inner Ring

Specifications

Series	NATR
Overall Width	21 mm
Inner Ring	With Inner Ring
I.D.	17 mm
Corner Radius	1 mm
Inch/Metric	Metric
Material	Steel
Enclosure	Gap Seals
Overall Width Tolerance [Min]	20.88 mm
Roller Width	20 mm
Roller Dia.	40 mm
Bearing Type	Needle Bearing
Roller Type	Crowned
Static Capacity	20400 lbf
Inside Diameter Tolerance [Max]	17 mm
Overall Width Tolerance [Max]	21 mm
Dynamic Capacity	14200 lbf
Limiting Speed	6000 rpm
Inside Diameter Tolerance [Min]	16.992 mm
Weight	0.38 LB
EAN or UPC	4012802057393
