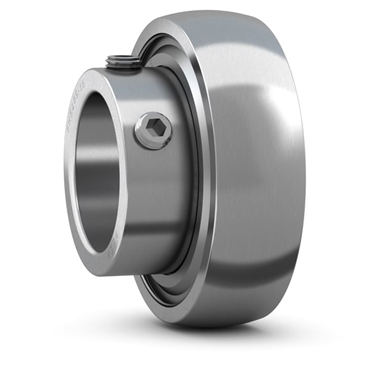

Insert bearings are based on sealed deep groove ball bearings. This variant follows PEER design. It has an inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft. Locking with an eccentric collar is suitable for applications where the direction of rotation is constant.
features
Designed for rotation in one direction
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels
Inch/Metric
Inch Bore
I.D.
1 in
Material
Bearing Steel
Outer Ring Width
0.591 in, 15 mm
Sealing
Seal On Both Sides
Bearing Material
Bearing Steel
Bore Type
Round Bore
Rubber Ring
Without
Type of Sealing
Contact
Series
FHS
Outer Race Width
0.59 in, 15 mm
Duty
Standard-Duty
Lubricant
Grease
Coating
Without
Outer Ring Type
Spherical
Radial Internal Clearance
C3
O.D.
2 in, 52 mm
Relubrication Feature
Without
Inner Ring Retaining Feature
Eccentric Collar
Inner Ring Width
1.063 in, 27 mm
Rolling Element
Ball Bearing
Weight
0.35 LB
EAN or UPC
12001069658626
