SphercoCFF7N

CFF7N

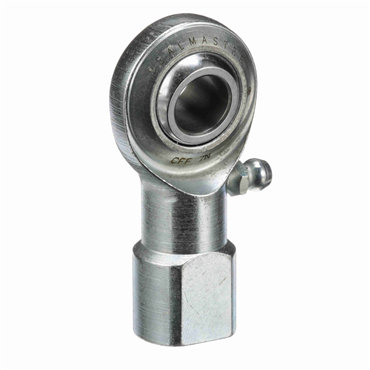

Carbon Steel Right-Handed 0.438 in ID Female Rod End
Item #105122482
  • 0.438 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
SphercoCFF7N
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.438 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
Width Across Flats 0.625 in, 15.88 mm
Right / Left Hand Right Hand
Head Width 0.437 in, 11 mm
Base Dia. 3/4 in
Inside Ring Width 0.562 in, 14 mm
Lube Fitting w/ Lube Fitting
Threads per Inch 20
Thread Pitch N/A
Length Through Bore 0.5625 in
Angle of Misalignment 7⁰
Insert Material Steel
Housing Material Carbon Steel
Lubrication Relubricatable
Bore Size 0.438 in - 7/16 in
Total Height 2.375 in, 60.32 mm
Static Load Rating [Max] 6500 lbf
Static Load Rating 6500 lbf, 28913.4 N
Ball Material 52100 Alloy Steel
Grade Commercial
Misalignment Range ±7°
Inch/Metric Inch
Head Diameter 1 1/8 in
Lubrication Type Lubricatable
Thread Length 1.062 in, 26.97 mm
Thread Direction Right-Handed
Shaft Height 1.812 in, 46.02 mm
Across Wrench Flats 5/8 in
Operating Temperature [Max] 250 ⁰F
Ball Flat Dia. 0.586 in
Thread Type UNF-3B
Series Spherco®
Thread Size 0.4375-20
I.D. 0.438 in, 11 mm
Head Dia. 1.125 in, 29 mm
Housing Width 7/16 in
Ball Dia. 0.812 in, 21 mm
Bearing Type 2 Piece - Metal-to-Metal
Type Female Spherical Plain Rod End
Weight 0.17 LB
EAN or UPC 637400180867
