SphercoTR12YN

TR12YN

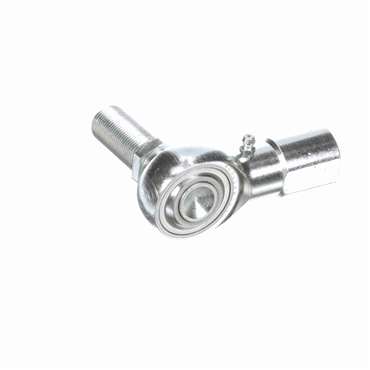

Carbon Steel Right-Handed 0.75 in ID Female Rod End
Item #101755843
  • 0.75 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
SphercoTR12YN
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.75 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
Right / Left Hand Right Hand Female to Right Hand Male
Stud Type Integral Ball Stud
Grade Precision
Type Female Spherical Plain Rod End
Ball Dia. 1.312 in, 33 mm
Thread Size 0.75-16
Misalignment Range ±25°
Lubrication Relubricatable
Threads per Inch 16
Lube Fitting w/ Lube Fitting
Housing Material Carbon Steel
Head Dia. 1.75 in, 44 mm
Thread Direction Right-Handed
Lubrication Type Lubricatable
Bearing Type 4 Piece - Metal-to-Metal
Ball Material 52100 Alloy Steel
Insert Material Brass
Thread Length 1.75 in, 44.45 mm
Thread Type UNF-3B
Series Spherco®
Angle of Misalignment 7⁰
Operating Temperature [Max] 250 ⁰F
Shaft Height 2.875 in, 73.02 mm
Width Across Flats 1 in, 25.4 mm
Static Load Rating 11300 lbf, 50264.886 N
Total Height 3.75 in, 95.25 mm
Inside Ring Width 0.875 in, 22 mm
Inch/Metric Inch
Head Width 0.687 in, 17 mm
I.D. 0.75 in, 19 mm
Weight 0.64 LB
EAN or UPC 637400190125
