SphercoTR7

TR7

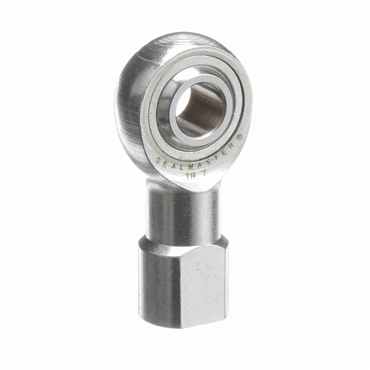

Carbon Steel Right-Handed 0.438 in ID Female Rod End
Item #101795319
  • 0.438 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
SphercoTR7
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.438 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
Lube Fitting w/o Lube Fitting
Head Dia. 1.125 in, 29 mm
Ball Flat Dia. 0.586 in
Grade Precision
Bore Size 0.438 in - 7/16 in
Operating Temperature [Max] 250 ⁰F
Thread Size 0.4375-20
Total Height 2.375 in, 60.32 mm
Insert Material Brass
Static Load Rating [Max] 5350 lbf
Inch/Metric Inch
Static Load Rating 5350 lbf, 23797.977 N
Housing Width 0.406 in
Right / Left Hand Right Hand
Inside Ring Width 0.562 in, 14 mm
Series Spherco®
Thread Length 1.062 in, 26.97 mm
Head Diameter 1 1/8 in
Type Female Spherical Plain Rod End
Length Through Bore 0.5 in
Ball Dia. 0.812 in, 21 mm
Thread Type UNF-3B
Width Across Flats 0.625 in, 15.88 mm
Threads per Inch 20
Base Dia. 3/4 in
Across Wrench Flats 5/8 in
Ball Material 52100 Alloy Steel
Misalignment Range ±6°
Housing Material Carbon Steel
Thread Pitch N/A
Shaft Height 1.812 in, 46.02 mm
Bearing Type 4 Piece - Metal-to-Metal
Thread Direction Right-Handed
Angle of Misalignment 7⁰
Lubrication Type Non-Lubricatable
Head Width 0.437 in, 11 mm
Lubrication Non-Relubricatable
I.D. 0.438 in, 11 mm
Weight 0.17 LB
EAN or UPC 637400176242
