SphercoTRE12Y

TRE12Y

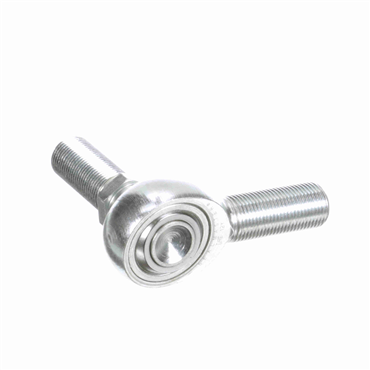

Carbon Steel 0.75 in ID Right-Handed Male Rod End
Item #101793615
  • 0.75 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
SphercoTRE12Y
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.75 in Inner Diameter
  • Carbon Steel Housing Material
  • Right-Handed Thread Direction
Threads per Inch 16
Insert Material Brass
Thread Direction Right-Handed
Thread Size 0.75-16
Ball Material 52100 Alloy Steel
Grade Precision
Lubrication Non-Relubricatable
Housing Material Carbon Steel
Right / Left Hand Right Hand Male to Right Hand Male
Head Dia. 1.75 in, 44 mm
Lubrication Type Non-Lubricatable
Lube Fitting w/o Lube Fitting
Type Male Spherical Plain Rod End
Misalignment Range ±25°
Thread Length 1.75 in, 44 mm
Stud Type Integral Ball Stud
Ball Dia. 1.312 in, 33 mm
Thread Type UNF-3A
Bearing Type 4 Piece - Metal-to-Metal
Head Width 0.687 in, 17 mm
Inside Ring Width 0.875 in, 22 mm
Shaft Height 2.875 in, 73 mm
Series Spherco®
Inch/Metric Inch
Total Height 3.75 in, 95 mm
Operating Temperature [Max] 250 ⁰F
I.D. 0.75 in, 19 mm
Static Load Rating 11300 lbf, 50265 N
Angle of Misalignment 7⁰
Weight 0.64 LB
EAN or UPC 637400187941
