SphercoTREL6

TREL6

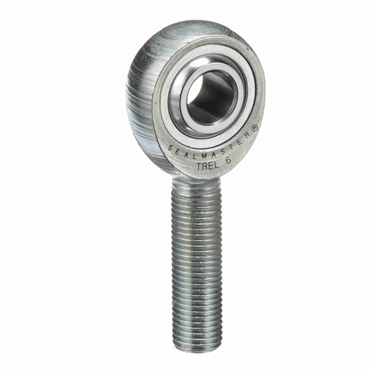

Carbon Steel 0.375 in ID Left-Handed Male Rod End
Item #101754056
  • 0.375 in Inner Diameter
  • Carbon Steel Housing Material
  • Left-Handed Thread Direction
SphercoTREL6
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.375 in Inner Diameter
  • Carbon Steel Housing Material
  • Left-Handed Thread Direction
Housing Material Carbon Steel
Bearing Type 4 Piece - Metal-to-Metal
Bore Size 0.375 in - 3/8 in
Right / Left Hand Left Hand
Thread Size 0.375-24
Thread Type UNF-3A
Head Dia. 1 in, 25 mm
Misalignment Range ±6°
Threads per Inch 24
Ball Material 52100 Alloy Steel
Angle of Misalignment 6⁰
Insert Material Brass
Head Diameter 1 in
Inch/Metric Inch
Shaft Height 1.938 in, 49 mm
I.D. 0.375 in, 10 mm
Thread Direction Left-Handed
Lubrication Non-Relubricatable
Total Height 2.438 in, 62 mm
Head Width 0.406 in, 10 mm
Lube Fitting w/o Lube Fitting
Ball Dia. 0.718 in, 18 mm
Static Load Rating [Max] 4000 lbf
Operating Temperature [Max] 250 ⁰F
Length Through Bore 0.5 in
Housing Width 0.406 in
Liner N/A
Inside Ring Width 0.5 in, 13 mm
Grade Precision
Type Male Spherical Plain Rod End
Thread Pitch N/A
Ball Flat Dia. 0.517 in
Series Spherco®
Lubrication Type Non-Lubricatable
Thread Length 1.25 in, 32 mm
Static Load Rating 4000 lbf, 17793 N
Weight 0.12 LB
EAN or UPC 637400174606
