SphercoTRL5N

TRL5N

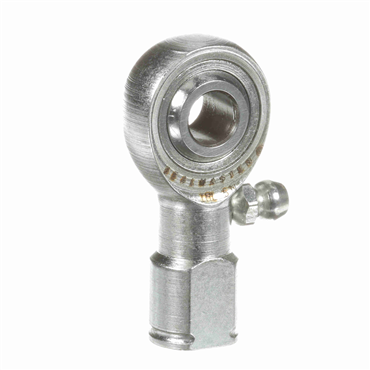

Carbon Steel Left-Handed 0.313 in ID Female Rod End
Item #101793715
  • 0.313 in Inner Diameter
  • Carbon Steel Housing Material
  • Left-Handed Thread Direction
SphercoTRL5N
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 0.313 in Inner Diameter
  • Carbon Steel Housing Material
  • Left-Handed Thread Direction
Type Female Spherical Plain Rod End
Angle of Misalignment 7⁰
Length Through Bore 0.4375 in
Bore Size 0.313 in - 5/16 in
Width Across Flats 0.437 in, 11.1 mm
Misalignment Range ±7°
Operating Temperature [Max] 250 ⁰F
Inch/Metric Inch
Total Height 1.813 in, 46.05 mm
Inside Ring Width 0.437 in, 11 mm
Ball Flat Dia. 0.447 in
Insert Material Brass
Lubrication Type Lubricatable
Lubrication Relubricatable
Across Wrench Flats 7/16 in
Head Diameter 7/8 in
Housing Width 11/32 in
Housing Material Carbon Steel
Threads per Inch 24
Thread Pitch N/A
Shaft Height 1.375 in, 34.92 mm
Static Load Rating 3350 lbf, 14901.537 N
I.D. 0.313 in, 8 mm
Grade Precision
Static Load Rating [Max] 3350 lbf
Head Dia. 0.875 in, 22 mm
Bearing Type 4 Piece - Metal-to-Metal
Thread Direction Left-Handed
Right / Left Hand Right Hand
Series Spherco®
Lube Fitting w/ Lube Fitting
Head Width 0.344 in, 9 mm
Ball Dia. 0.625 in, 16 mm
Ball Material 52100 Alloy Steel
Thread Size 0.3125-24
Thread Length 0.75 in, 19.05 mm
Thread Type UNF-3B
Base Dia. 0.531 in
Weight 0.08 LB
EAN or UPC 637400189341
