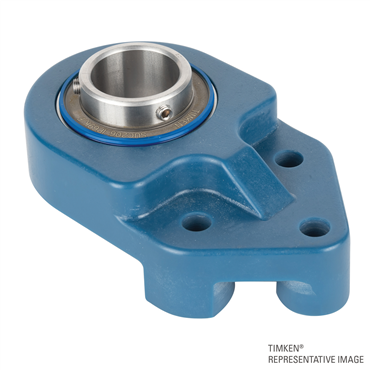

Timken hygienic bearings rated for IP69K are specifically engineered to perform in food and beverage applications where high-pressure washdowns, high humidity and excessive temperature differences exist. Timken achieves IP69K rating without a sealed end-cover. To meet the IP69K rating, our bearings did not allow any water or dust past the seal during the aggressive tests. With Timken, lubrication stays inside the bearing through food grade grease or solid lube options. With these solutions, there’s no need to re-grease, resulting in minimal maintenance to the bearing.
The ball inserts (rings, balls, cage) are fully stainless making them fully metal detectable and corrosion resistant. Our IP69K insert is available in combination with four different housing materials including standard cast stainless, white thermoplastic, hygienic stainless and hygienic blue thermoset housing material. The product line is available with set screw locking and offers thousands of housing combinations including custom options designed to fit any food and beverage application need. Our products fit shaft sizes from 20mm to 50mm and 3/4 in. to 2 in..
features
Achieves IP69K rating without a sealed end-cover
Optically detectable blue seal
Blue seal and flinger material are FDA/EC compliant for direct food contact
Insert bearings (rings, balls, cage) are entirely stainless steel making them fully metal detectable
Lubed for life, no need to re-grease, resulting in minimal maintenance
Numerous hygienic housing types and sizes are available
Component (I/R; O/R assembly)
Assembly
Outer Ring Width
0.79 in, 20 mm
Relubrication Feature
Grease Zerk
Overall Width
3.81 in, 96.8 mm
Bearing Material
Stainless Steel
I.D.
1.44 in, 36.51 mm
Bolt Center to Center [Nom]
2 in, 50.8 mm
Housing Material
Polymer
Seal Material
Nitrile
Mounted Unit Duty
Standard Duty
Internal Clearance
C3
Pilot Configuration
No Pilot
Shaft Dia.
1.4375 in
Overall Height
1.79 in, 45.5 mm
Mounting Method
Set Screw Mount
Dynamic Load Rating
21.8 kN
Raceway Style
1 Rib Inner Ring and Outer Ring
No. of Rows
Single
Mounting Type
3-Bolt Flange, Standoff
Relubricatable
Yes
Material Insert Bearing
Stainless Steel
Fillet Radius Cone
0.043 in, 1.1 mm
Self Aligning
No
Lubricant
Food Grade Grease
Inner Ring Width Type
Wide Inner Ring (Both Sides Extended)
Adapter Sleeve
No
O.D. Type
Spherical
Bearing Type
Ball Bearing
Bolt Center
2 in, 50.8 mm
Length Through Bore
1.69 in, 42.9 mm
Seal Type
Contact Seal with Flingers
End Type
Open End
Static Load Rating
12.3 kN
Inner Ring Width
1.69 in, 42.9 mm
Ball Material
Stainless Steel
Rolling Element
Ball
Housing Configuration
Solid
Cage Type
Riveted
Bolt Size
0.5 in, M12
Finish
Uncoated
Cage Material
Stainless Steel
Bolt Circle Diameter
0.531 in, 13.49 mm
Bore Type
Round
Overall Length
6.19 in, 157.18 mm
O.D.
2.83 in, 72 mm
Expansion Type
Non-Expansion
Duty Type
Standard
Precision Level
ABEC 1
Closure Type
2 Seals
Ring Type
One Piece Inner and Outer
Locking Type
Set Screw
Weight
3.8 LB
EAN or UPC
85706138523
