With more than a century of knowledge and innovation, Timken is an industry-leader in designing, manufacturing and applying high performance engineered bearings into our customers’ most challenging applications. With one common global quality system across all manufacturing plants, we deliver consistent performance and reliability anywhere in the world. As a Timken customer, you are connected to a team of application, sales and on-site service engineers who help solve unique equipment challenges resulting in extended uptime, productivity and efficiency.

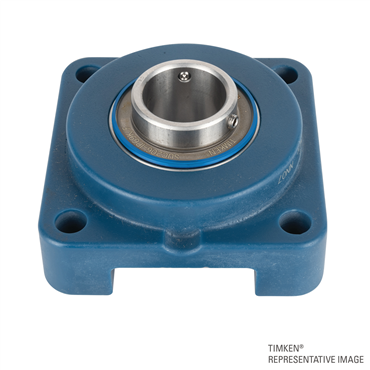

Timken hygienic bearings rated for IP69K are specifically engineered to perform in food and beverage applications where high-pressure washdowns, high humidity and excessive temperature differences exist. Timken achieves IP69K rating without a sealed end-cover. To meet the IP69K rating, our bearings did not allow any water or dust past the seal during the aggressive tests. With Timken, lubrication stays inside the bearing through food grade grease or solid lube options. With these solutions, there’s no need to re-grease, resulting in minimal maintenance to the bearing.
The ball inserts (rings, balls, cage) are fully stainless making them fully metal detectable and corrosion resistant. Our IP69K insert is available in combination with four different housing materials including standard cast stainless, white thermoplastic, hygienic stainless and hygienic blue thermoset housing material. The product line is available with set screw locking and offers thousands of housing combinations including custom options designed to fit any food and beverage application need. Our products fit shaft sizes from 20mm to 50mm and 3/4 in. to 2 in..
features
Achieves IP69K rating without a sealed end-cover
Optically detectable blue seal
Blue seal and flinger material are FDA/EC compliant for direct food contact
Insert bearings (rings, balls, cage) are entirely stainless steel making them fully metal detectable
Lubed for life, no need to re-grease, resulting in minimal maintenance
Numerous hygienic housing types and sizes are available
Static Load Rating
12.3 kN
Seal Material
Nitrile
Bolt Circle Diameter
0.531 in, 13.49 mm
Bolt Size
0.5 in, M12
Overall Length
4.75 in, 120.73 mm
I.D.
1.38 in, 35 mm
Overall Height
1.79 in, 45.5 mm
Mounting Type
4-Bolt Flange, Standoff
Cage Material
Stainless Steel
Closure Type
2 Seals
Material Insert Bearing
Stainless Steel
Bolt Center
3.63 in, 92.2 mm
Relubricatable
No
Rolling Element
Ball
Bearing Type
Ball Bearing
Seal Type
Contact Seal with Flingers
Locking Type
Set Screw
Self Aligning
No
Housing Material
Polymer
Finish
Uncoated
Cage Type
Riveted
Precision Level
ABEC 1
Fillet Radius Cone
0.043 in, 1.1 mm
Bearing Material
Stainless Steel
Inner Ring Width
1.69 in, 42.9 mm
Ring Type
One Piece Inner and Outer
Expansion Type
Non-Expansion
Mounted Unit Duty
Standard Duty
Inner Ring Width Type
Wide Inner Ring (Both Sides Extended)
Adapter Sleeve
No
Outer Ring Width
0.79 in, 20 mm
No. of Rows
Single
Pilot Configuration
No Pilot
Component (I/R; O/R assembly)
Assembly
Bolt Center to Center [Nom]
3.63 in, 92.2 mm
Raceway Style
1 Rib Inner Ring and Outer Ring
Length Through Bore
1.69 in, 42.9 mm
Lubricant
Food Grade Solid Lubricant
End Type
Open End
Bore Type
Round
Mounting Method
Set Screw Mount
Dynamic Load Rating
21.8 kN
Internal Clearance
C3
O.D.
2.83 in, 72 mm
Ball Material
Stainless Steel
Housing Configuration
Solid
Duty Type
Standard
O.D. Type
Spherical
Weight
2.866 LB
EAN or UPC
85706133733
