With more than a century of knowledge and innovation, Timken is an industry-leader in designing, manufacturing and applying high performance engineered bearings into our customers’ most challenging applications. With one common global quality system across all manufacturing plants, we deliver consistent performance and reliability anywhere in the world. As a Timken customer, you are connected to a team of application, sales and on-site service engineers who help solve unique equipment challenges resulting in extended uptime, productivity and efficiency.

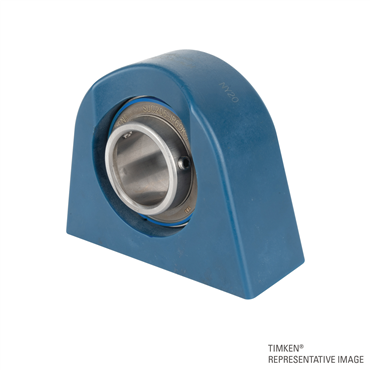

Timken hygienic bearings rated for IP69K are specifically engineered to perform in food and beverage applications where high-pressure washdowns, high humidity and excessive temperature differences exist. Timken achieves IP69K rating without a sealed end-cover. To meet the IP69K rating, our bearings did not allow any water or dust past the seal during the aggressive tests. With Timken, lubrication stays inside the bearing through food grade grease or solid lube options. With these solutions, there’s no need to re-grease, resulting in minimal maintenance to the bearing.
The ball inserts (rings, balls, cage) are fully stainless making them fully metal detectable and corrosion resistant. Our IP69K insert is available in combination with four different housing materials including standard cast stainless, white thermoplastic, hygienic stainless and hygienic blue thermoset housing material. The product line is available with set screw locking and offers thousands of housing combinations including custom options designed to fit any food and beverage application need. Our products fit shaft sizes from 20mm to 50mm and 3/4 in. to 2 in..
features
Achieves IP69K rating without a sealed end-cover
Optically detectable blue seal
Blue seal and flinger material are FDA/EC compliant for direct food contact
Insert bearings (rings, balls, cage) are entirely stainless steel making them fully metal detectable
Lubed for life, no need to re-grease, resulting in minimal maintenance
Numerous hygienic housing types and sizes are available
Adapter Sleeve
No
Seal Material
Nitrile
Fillet Radius Cone
0.039 in, 1 mm
Housing Material
Polymer
Locking Type
Set Screw
Static Load Rating
6.3 kN
Ball Material
Stainless Steel
Inner Ring Width Type
Wide Inner Ring (Both Sides Extended)
Internal Clearance
C3
Cage Type
Riveted
O.D. Type
Spherical
Mounting Method
Set Screw Mount
Cage Material
Stainless Steel
Seal Type
Contact with Flinger
O.D.
2.05 in, 52 mm
Relubrication Feature
Grease Zerk
End Type
Open End
Expansion Type
Non-Expansion
Bore Type
Round
Ring Type
One Piece Inner and Outer
Bolt Center
2 in, 50.8 mm
Shaft Centerline
1.44 in, 36.6 mm
Finish
Uncoated
Overall Height
2.81 in, 71.4 mm
Overall Length
3 in, 76.2 mm
No. of Rows
Single
Bearing Type
Mounted
Lubricant
Food Grade Grease
Bearing Material
Stainless Steel
Material Insert Bearing
Stainless Steel
Inner Ring Width
1.34 in, 34.1 mm
I.D.
1 in, 25.4 mm
Overall Width
1.343 in, 34.1 mm
Thread Size
3/8-16
Rolling Element
Ball
Closure Type
2 Seals
Duty Type
Standard
Self Aligning
No
Raceway Style
1 Rib Inner Ring and Outer Ring
Component (I/R; O/R assembly)
Assembly
Relubricatable
Yes
Dynamic Load Rating
11.9 kN
Mounting Type
Tapped Base
Precision Level
ABEC 1
Housing Configuration
Solid
Nominal Bolt Center To Center
2 in, 50.8 mm
Pilot Configuration
No Pilot
Thread Depth
0.6 in, 15.2 mm
Outer Ring Width
0.67 in, 17 mm
Length Through Bore
1.34 in, 34.1 mm
Weight
1.389 LB
EAN or UPC
85706138080
