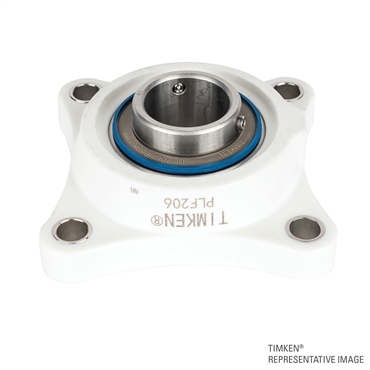

Timken hygienic bearings rated for IP69K are specifically engineered to perform in food and beverage applications where high-pressure washdowns, high humidity and excessive temperature differences exist. Timken achieves IP69K rating without a sealed end-cover. To meet the IP69K rating, our bearings did not allow any water or dust past the seal during the aggressive tests. With Timken, lubrication stays inside the bearing through food grade grease or solid lube options. With these solutions, there’s no need to re-grease, resulting in minimal maintenance to the bearing.
The ball inserts (rings, balls, cage) are fully stainless making them fully metal detectable and corrosion resistant. Our IP69K insert is available in combination with four different housing materials including standard cast stainless, white thermoplastic, hygienic stainless and hygienic blue thermoset housing material. The product line is available with set screw locking and offers thousands of housing combinations including custom options designed to fit any food and beverage application need. Our products fit shaft sizes from 20mm to 50mm and 3/4 in. to 2 in..
features
Achieves IP69K rating without a sealed end-cover
Optically detectable blue seal
Blue seal and flinger material are FDA/EC compliant for direct food contact
Insert bearings (rings, balls, cage) are entirely stainless steel making them fully metal detectable
Lubed for life, no need to re-grease, resulting in minimal maintenance
Numerous hygienic housing types and sizes are available
Mounted Unit Duty
Standard Duty
Static Load Rating
6.3 kN
Dynamic Load Rating
11.9 kN
Self Aligning
No
Closure Type
2 Seals
Overall Width
3 3/4 in, 95 mm
Overall Height
1 7/16 in, 36.8 mm
Relubricatable
Yes
Precision Level
ABEC 1
O.D.
2.05 in, 52 mm
Cage Type
Riveted
Adapter Sleeve
No
Housing Material
Polymer
Raceway Style
1 Rib Inner Ring and Outer Ring
Fillet Radius Cone
0.039 in, 1 mm
Lubricant
Food Grade Grease
Pilot Configuration
No Pilot
Bolt Size
3/8 in, M10
End Type
Open End
Length Through Bore
1.34 in, 34.1 mm
O.D. Type
Spherical
Mounting Type
4 Bolt Flange
Material Insert Bearing
Stainless Steel
Seal Material
Nitrile
Shaft Dia.
1 in
Housing Configuration
Solid
Bearing Type
Ball Bearing
Overall Length
3.75 in, 95 mm
Component (I/R; O/R assembly)
Assembly
Relubrication Feature
Grease Zerk
Internal Clearance
C3
Inner Ring Width Type
Wide Inner Ring (Both Sides Extended)
Seal Type
Contact Seal with Flingers
I.D.
1 in, 25.4 mm
Bolt Center
2 3/4 in, 70 mm
Cage Material
Stainless Steel
Mounting Method
Set Screw Mount
Finish
Uncoated
Outer Ring Width
0.669 in, 17 mm
Inner Ring Width
1.34 in, 34.1 mm
Duty Type
Standard
Bolt Circle Diameter
7/16 in, 11 mm
Bore Type
Round
Rolling Element
Ball
Ball Material
Stainless Steel
No. of Rows
Single
Expansion Type
Non-Expansion
Bearing Material
Stainless Steel
Bolt Center to Center [Nom]
2 3/4 in, 70 mm
Ring Type
One Piece Inner and Outer
Locking Type
Set Screw
Weight
0.449 LB
EAN or UPC
13992471758
