8P60P1CS

Severe Duty & IEEE 841 Three Phase TEFC Horizontal - Footed Motor

Item #101842228

60 Hz

460 Voltage Rating

Horizontal - Footed Mount

TEFC Enclosure

364TS Frame

+ Show More

Auto Replenish

each One-time purchase

Alternate Products

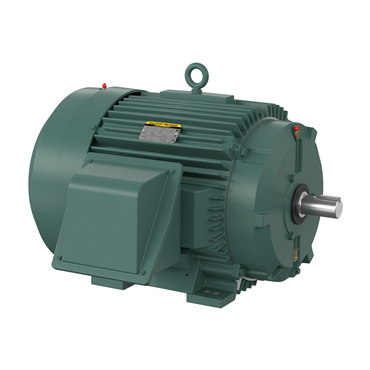

Baldor-Reliance ECP84310T-4

60 hp 364TS Frame Three Phase AC Motor

Item #101003711

each

Compare

Product Details

Specifications

Hz	60 Hz
C Dimension	30.8 in
Open End Bearing	6207-2Z-J/C3
Full Load Amps	68
Frame	364TS, 364
Full Load rpm	3565 rpm
HP	60
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
RPM	3600 rpm
Mounting	Horizontal Mount, Horizontal - Footed
Full Load Efficiency	93.6 %
Service Factor	1.15
Drive End Bearing	6309-2Z-J/C3
Frame Material	Cast Iron
Motor Application	Severe Duty
Duty	Continuous Duty
Phase	Three Phase
Enclosure	Totally Enclosed, TEFC
Poles	2
Insulation	F
Design	B
Voltage Rating	460
Weight	785.0 LB
EAN or UPC	786382009847
