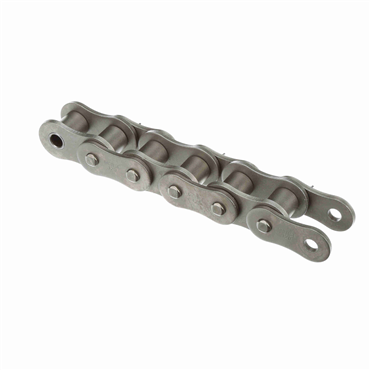

Single Strand ANSI Roller Chain

Item #100800630
    Shipment Options
  • Pre-Packed QuantitiesPre-Packed Quantities

Alternate Products

Product details

  • #120 Chain
  • 1 Strand
  • 1 1/2" Pitch
  • Cottered
  • Carbon Steel


  • PerforMax™ solid lube grooved bushings included in sizes 80 through 140 to maximize wear life
  • Long lasting, heat-treated, solid rollers
  • Heat-treated pins that are fabricated from high grade steel
  • Ring-coined connecting links with same fatigue strength as base chain providing improved capacity
  • Higher horsepower capacity
  • Built to handle shock loads
  • Dynamic prestressing
  • Complies with RoHS restrictions on the use of certain hazardous substances in electrical and electronic equipment


  • Maximum allowable load exceeds ANSI standards


No. of Strands Across 1
Material Carbon Steel
Duty Standard
Chain Series 120, 120-2, 120-3, 120-4, 120-6, 120-8
Min. Ultimate Strength ANSI Standard 28125 lb
ANSI No. 120
Rated Working Load 6,830 lb
Width Between Roller Link Plates 1 in
Pin Diameter 0.437 in
Average Tensile Strength 37,480 lbf
Link Plates Height 1.425 in
Standard Type of Pin Cottered
Number of Links per 10 ft 80
Pin Overall Length 2.118 in
Roller Dia. 7/8 in
Chain Construction Cottered
Roller Width 1 in
Chain Type ANSI
Side Bow No
Chain No. 120
Pin Material Carbon Steel
Self-Lubricating No
Chain Pitch 1 1/2 in
Package Type 10 Foot Box
Pins & Rollers Standard
Maximum Allowable Load 6830 lb
Link Plates Thickness 0.187 in
Weight 4.207 LB
EAN or UPC 97039174307
