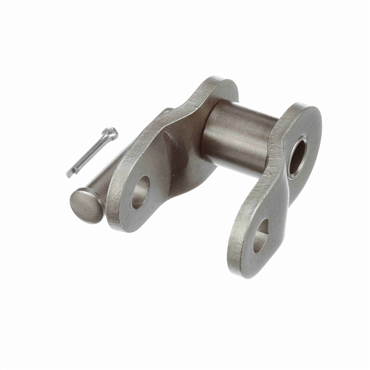

Single Strand ANSI Roller Chain Link

120H OFFSET LK

Single Strand ANSI Roller Chain Link
Item #100800904
  • #120
  • 1 Strand
  • Cotter Pin Offset (Half) Link
  • Heavy Series
  • 1 1/2 in Pitch
Single Strand ANSI Roller Chain Link
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • #120
  • 1 Strand
  • Cotter Pin Offset (Half) Link
  • Heavy Series
  • 1 1/2 in Pitch

features

  • Ring-coined connecting links with same fatigue strength as base chain providing improved capacity
Link Plates Height 1.425 in
Roller Dia. 7/8 in
Pin Length (Lc) 0.96 in
Chain No. 120
Link Type Cotter Pin
Pin Overall Length 2.264 in
Roller Width 1 in
Chain Pitch 1 1/2 in
Pin Length (Lr) 1.13 in
Type Offset (Half) Link
Material Carbon Steel
Chain Construction Part (CL, Ol, RL)
Pin Material Carbon Steel
Rated Working Load 7,270 lb
Chain Series 120, 120-2, 120-3, 120-4, 120-6, 120-8
Pin Diameter 0.437 in
Chain Type ANSI
Duty Heavy Series
No. of Strands Across 1
Link Plates Thickness 0.219 in
Weight 0.56 LB
EAN or UPC 97039177193
