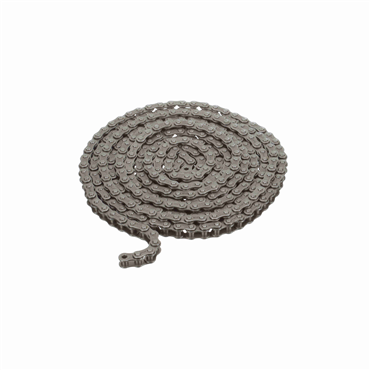

Single Strand ANSI Roller Chain

35RIV

Single Strand ANSI Roller Chain
Item #100800568
  • #35 Chain
  • 1 Strand
  • 3/8" Pitch
  • Riveted
  • Carbon Steel
  • Standard-Duty
  • Rollerless
  • 10 Foot Box
+ Show More + Show Less
Single Strand ANSI Roller Chain
    Shipment Options
  • Pre-Packed QuantitiesPre-Packed Quantities
  • #35 Chain
  • 1 Strand
  • 3/8" Pitch
  • Riveted
  • Carbon Steel

features

  • PerforMax™ solid lube grooved bushings included in sizes 80 through 140 to maximize wear life
  • Long lasting, heat-treated, solid rollers
  • Heat-treated pins that are fabricated from high grade steel
  • Ring-coined connecting links with same fatigue strength as base chain providing improved capacity
  • Higher horsepower capacity
  • Built to handle shock loads
  • Dynamic prestressing
  • Complies with RoHS restrictions on the use of certain hazardous substances in electrical and electronic equipment

compliances

  • Maximum allowable load exceeds ANSI standards
Material Carbon Steel
Bushing Diameter 0.2 in
Standard Type of Pin Riveted
Pin Material Carbon Steel
Chain Type Rollerless
No. of Strands Across 1
Chain No. 35
Chain Construction Riveted
Average Tensile Strength 2,530 lbf
ANSI No. 35
Link Plates Height 0.354 in
Pins & Rollers Rollerless
Pin Overall Length 1/2 in
Roller Dia. 0.2 in
Package Type 10 Foot Box
Maximum Allowable Load 480 lb
Number of Links per 10 ft 320
Pin Diameter 0.141 in
Duty Standard
Rated Working Load 480 lb
Side Bow No
Chain Series 35, 35-2, 35-3, 35-4
Self-Lubricating No
Width Between Roller Link Plates 0.188 in
Chain Pitch 3/8 in
Min. Ultimate Strength ANSI Standard 1760 lb
Link Plates Thickness 0.05 in
Roller Width 0.188 in
Weight 0.25 LB
EAN or UPC 97039171238
