60H RIV

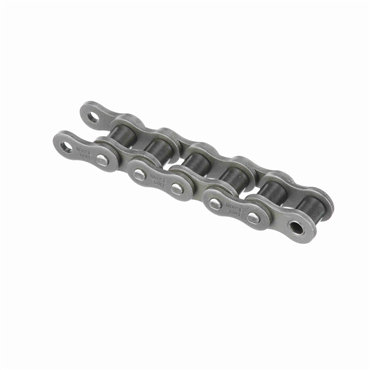

Standard Roller Chain

Item #100800597

Heavy Series

Standard Pins & Rollers

10 Foot Box

+ Show More

Auto Replenish

Foot One-time purchase

Alternate Products

Morse 60H RIV

Standard Roller Chain

Item #100990967

Foot

Compare

GoldSpec® GS60H RIV

Single Strand ANSI Roller Chain

Item #101665886

Foot

Compare

Product Details

PerforMax™ solid lube grooved bushings included in sizes 80 through 140 to maximize wear life
Long lasting, heat-treated, solid rollers
Heat-treated pins that are fabricated from high grade steel
Ring-coined connecting links with same fatigue strength as base chain providing improved capacity
Higher horsepower capacity
Built to handle shock loads
Dynamic prestressing
Complies with RoHS restrictions on the use of certain hazardous substances in electrical and electronic equipment

Specifications

Link Plates Height	0.713 in
Standard Type of Pin	Riveted
Pin Overall Length	1.252 in
ANSI No.	60
Package Type	10 Foot Box
Self-Lubricating	No
Width Between Roller Link Plates	0.5 in
Chain Pitch	3/4 in
Pin Material	Carbon Steel
Maximum Allowable Load	2200 lb
Rated Working Load	2,200 lb
Chain Type	ANSI
Chain Series	60, 60-2, 60-3, 60-4, 60-6, 60-8
Pins & Rollers	Standard
Duty	Heavy
Average Tensile Strength	9,920 lbf
Side Bow	No
Link Plates Thickness	1/8 in
No. of Strands Across	1
Material	Carbon Steel
Pin Diameter	0.234 in
Roller Width	1/2 in
Chain No.	60
Chain Construction	Riveted
Roller Dia.	0.469 in
Weight	1.298 LB
EAN or UPC	97039176851
