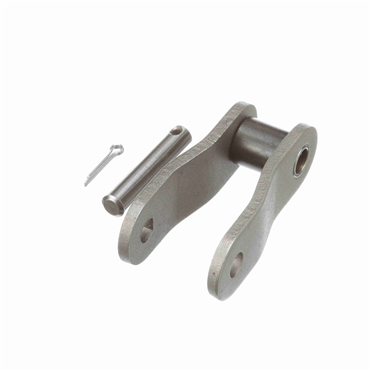

C2060H OFFSET LK

Extended Pitch Conveyor Series Link

Item #100800999
each
    Shipment Options

Alternate Products

Product details

  • #2060
  • 1 Strand
  • Cotter Pin Offset (Half) Link
  • Heavy Series
  • 1 1/2 in Pitch

features

  • Heat-treated, high strength construction

Specifications

Pin Material Carbon Steel
Link Plates Thickness 1/8 in
Chain Pitch 1 1/2 in
Roller Width 1/2 in
Link Type Cotter Pin
Chain Construction Part (CL, Ol, RL)
Material Carbon Steel
Roller Dia. 0.469 in
Pin Overall Length 1.225 in
Rated Working Load 1,410 lb
Link Plates Height 0.677 in
Pin Diameter 0.234 in
Chain Series 2060, 2062, 2068, 2069
Duty Heavy Series
Chain No. 2060
No. of Strands Across 1
Type Offset (Half) Link
Chain Type ANSI
Weight 0.13 LB
EAN or UPC 97039181374
