CFFL12N

COMMERCIAL ROD END 2PC FEMALE LH ZE

Item #105118000

Auto Replenish

each One-time purchase

Alternate Products

Alinabal AFL-12-GP-8

A-Series Female Rod End

Item #100740810

each

Compare

Aurora Bearing Co. CG-12Z

CG Series General Purpose Economy Female Rod End

Item #101805015

each

Compare

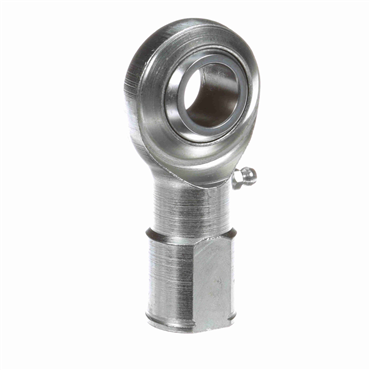

Sealmaster CFFL12N

Commercial Left Hand Thread 2 pc Greasable Race Female Rod End

Item #101182641

each

Compare

Heim Bearings FL12CRG

Carbon Steel Left-Handed 0.75 in ID Female Rod End

Item #102300703

each

Compare

Product Details

Specifications

Series	Spherco®
Static Load Rating	14000 lbf, 62275.1 N
Bearing Type	2 Piece - Metal-to-Metal
Head Dia.	1.75 in, 44 mm
Angle of Misalignment	7⁰
Inch/Metric	Inch
I.D.	0.75 in, 19 mm
Type	Female Spherical Plain Rod End
Operating Temperature [Max]	250 ⁰F
Inside Ring Width	0.875 in, 22 mm
Width Across Flats	1 in, 25.4 mm
Head Width	0.687 in, 17 mm
Housing Material	Carbon Steel
Ball Material	52100 Alloy Steel
Lubrication Type	Lubricatable
Thread Type	UNF-3B
Insert Material	Steel
Total Height	3.75 in, 95.25 mm
Thread Direction	Left-Handed
Thread Size	0.75-16
Ball Dia.	1.312 in, 33 mm
Thread Length	1.75 in, 44.45 mm
Shaft Height	2.875 in, 73.02 mm
Weight	0.64 LB
EAN or UPC	637400180522
