SphercoCTFDL5

CTFDL5

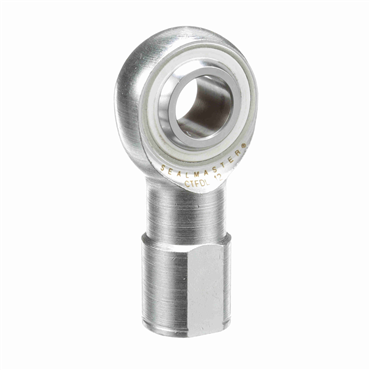

COMMERCIAL ROD END FEMALE LH THERMO
Item #105130191
SphercoCTFDL5
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
Lubrication Type Self-Lubricatable
Ball Dia. 0.625 in, 16 mm
Head Width 0.344 in, 9 mm
Inside Ring Width 0.437 in, 11 mm
Thread Type UNF-3B
Static Load Rating 1575 lbf, 7005.9 N
Thread Length 0.75 in, 19.05 mm
Thread Size 0.3125-24
I.D. 0.313 in, 8 mm
Shaft Height 1.375 in, 34.92 mm
Angle of Misalignment 7⁰
Series Spherco®
Head Dia. 0.875 in, 22 mm
Ball Material 52100 Alloy Steel
Bearing Type Self-Lubricating
Operating Temperature [Max] 125 ⁰F
Total Height 1.813 in, 46.05 mm
Type Female Spherical Plain Rod End
Insert Material Thermo-Plastic
Housing Material Carbon Steel
Width Across Flats 0.437 in, 11.1 mm
Inch/Metric Inch
Thread Direction Left-Handed
Weight 0.08 LB
EAN or UPC 637400181772
