SphercoTREL4N

TREL4N

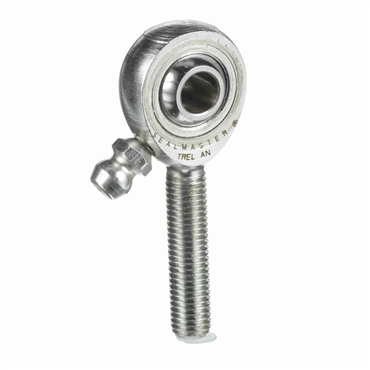

PRECISION ROD END 4PC MALE LH ZERK
Item #105141284
SphercoTREL4N
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
Inch/Metric Inch
Type Male Spherical Plain Rod End
Angle of Misalignment 8⁰
Shaft Height 1.562 in, 40 mm
Thread Type UNF-3A
Ball Material 52100 Alloy Steel
Thread Length 1 in, 25 mm
Operating Temperature [Max] 250 ⁰F
Thread Direction Left-Handed
I.D. 0.25 in, 6 mm
Bearing Type 4 Piece - Metal-to-Metal
Housing Material Carbon Steel
Head Dia. 0.75 in, 19 mm
Thread Size 0.25-28
Total Height 1.937 in, 49 mm
Series Spherco®
Inside Ring Width 0.375 in, 10 mm
Static Load Rating 1700 lbf, 7562 N
Ball Dia. 0.515 in, 13 mm
Lubrication Type Lubricatable
Insert Material Brass
Head Width 0.281 in, 7 mm
Weight 0.05 LB
EAN or UPC 637400187231
