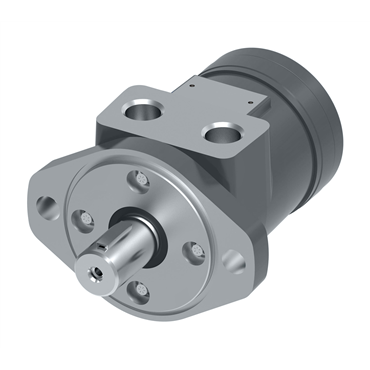

- Spool Valve Motor
- Cast Iron Material
- 1/2-14 Prort Size
- NPTF Port
- 2 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Special Features Hardware Code | 00 |
| Series | H Series |
| Seal Material | Buna-N |
| Displacement (in³/rev) | 5.9 |
| Mounting Hole Size | 0.54 in |
| Shaft Type | Straight w/ Woodruff Key |
| Front Seal Kit If Available | 60540-000 |
| Splines | 0 |
| Output Shaft Type | Straight |
| Case Drain Code | 0 |
| Mounting Holes | 0.535 in |
| Port Type | NPTF |
| Inlet Pressure [Max] | 2500 psi |
| Torque | 155 Nm |
| Port Size & Location | 1/2 in NPTF Side |
| Port Size | 1/2-14 |
| Bolt Circle Dia. | 4.19 in |
| Recommended System Working Temperature [Min] | -30 °F |
| RPM [Max] | 585 rpm |
| Maximum Speed @ Continuous Flow | 585 rpm @ 15 gal/min |
| Pilot Diameter | 3.25 in |
| Intermittent Pressure [Max] | 165 bar |
| Port Location | Side Port |
| Output Shaft Code | 01 |
| Port Code | B |
| Special Features Assembly Code | 0 |
| Motor Type | Spool Valve |
| Paint | Primer Low Gloss Black |
| Mount Type | 2 Bolt |
| Flow [Max] | 15 gal/min |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Displacement | 96 cm3/Rev |
| Motor Element | Gerotor |
| RPM [Min] | 585 rpm |
| Output Torque at Rated PSI (inch/pounds) | 1368 in lb |
| Recommended System Working Temperature [Max] | 180 °F |
| Rotation | Standard Rotation |
| Pressure [Max] | 1800 psi |
| Design Code | 9 |
| Duty | Standard-Duty |
| Seal Options | Standard |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Case Drain | None |
| Brake Type | Hydraulic |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Corrosion Resistant | No |
| Paint Code | A |
| Material | Cast Iron |
| Flange Orientation | Standard |
| Mounting Type Code | A |
| Flow Rate | 57 lpm |
| Weight | 12.25 LB |
