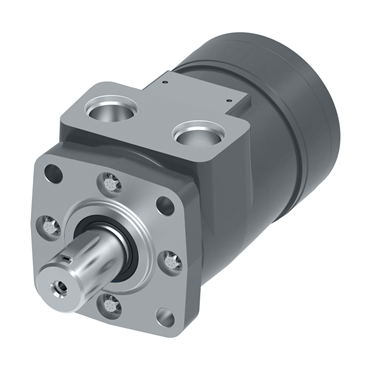

- Spool Valve Motor
- Cast Iron Material
- 7/8-14 Prort Size
- SAE O-Ring Port
- 4 Bolt Mount
description
- Small but powerful, Eaton spool valve motors have the perfect combination of features for a variety of demanding applications, from harvesting equipment to food processing plants. With hydrodynamic journal bearings optimized for long life, these spool valve motors distribute pressurized fluid via integrated valve slots into the Gerotor or Geroler® orbit gear set. This results in a spool valve section that can be optimized for low-flow low-speed requirements, keeping equipment performing smoothly.
applications
- Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
features
- Compact yet powerful
- Extended bearing life
- Increased shaft seal
options
- Five mounting styles
- Low-speed spool
- Nine shaft options
- Speed sensors
| Mounting Hole Size | 3/8-16 UNC-2B |
| Case Drain Code | 0 |
| Shaft Size & Type | 1 in x 1/4 in Straight |
| Seal Options | Standard |
| Maximum Speed @ Continuous Flow | 385 rpm @ 15 gal/min |
| Output Torque at Rated PSI (inch/pounds) | 1956 in lb |
| Series | H Series |
| Rotation | Standard Rotation |
| Front Seal Kit If Available | 60540-000 |
| Flow Rate | 57 lpm |
| Shaft Type | Straight w/ Woodruff Key |
| Splines | 0 |
| Pilot Diameter | 1.75 in |
| Flow [Max] | 15 gal/min |
| RPM [Max] | 385 rpm |
| Torque | 221 Nm |
| Displacement (in³/rev) | 8.9 |
| Output Shaft Code | 01 |
| Inlet Pressure [Max] | 2500 psi |
| Mounting Holes | 3/8-16 |
| Port Location | Side Port |
| Pressure [Max] | 1700 psi |
| Brake Type | Hydraulic |
| Special Features Assembly Code | 0 |
| Recommended System Working Temperature [Min] | -30 °F |
| Bolt Circle Dia. | 3 1/4 in |
| Port Code | A |
| Seal Material | Buna-N |
| Output Shaft Type | Straight |
| Case Drain | None |
| Mount Type | 4 Bolt |
| Port Size & Location | SAE-10 Side |
| Mounting Type Code | B |
| Motor Element | Gerotor |
| Special Features Hardware Code | 00 |
| Paint | Primer Low Gloss Black |
| Material | Cast Iron |
| Corrosion Resistant | No |
| Viscosity Recommendation | 100 Saybold Universal Second |
| Port Type | SAE O-Ring |
| Recommended System Working Temperature [Max] | 180 °F |
| Design Code | 9 |
| Paint Code | A |
| Duty | Standard-Duty |
| Port Size | 7/8-14 |
| Intermittent Pressure [Max] | 159 bar |
| Flange Orientation | Standard |
| Paint/Packaging | Low Gloss Black, Individual Box |
| Displacement | 146 cm3/Rev |
| Motor Type | Spool Valve |
| RPM [Min] | 385 rpm |
| Weight | 12.0 LB |
