- Gray Iron Material
- Minimum Plain Bore Type
description
- Spur gears are designed to transmit motion and power between parallel shafts. Configurations include spur, rack, pinion wire, stem pinions, and internal gears
- most with a selection of bores, keyways, and setscrews. Fine-pitch gears are available in plastic, brass, stainless steel, and steel. Heavier pitch spurs are available in steel and cast iron. Styles include plain, web, web with lightening holes, or spoked. Change gears have consecutive numbers of teeth for a variety of ratios.
features

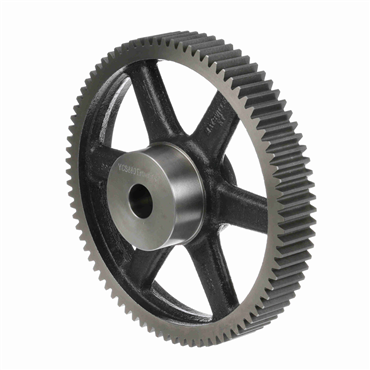

- Browning Minimum Bore Spur Gear
- When you think "Special" Gears - Think Browning
- Browning Gears are rated in accordance with AGMA standards
| Pitch Diameter | 10 in |
| Standards Met | AGMA |
| Face Width (in) | 1.5 |
| Overall Length (in) | 2.75 |
| No. of Teeth | 80 |
| Pitch Diameter (in) | 10 |
| Bore (Max) (in) | 2 |
| Outside Diameter (in) | 10.25 |
| Material | Gray Iron |
| Length Through Bore (in) | 2.75 |
| Hub Diameter (in) | 3.25 |
| Bore (Min) (in) | 1.125 |
| Bore Type | Minimum Plain Bore |
| Hub Projection (in) | 1.25 |
| Number of Teeth/Threads | 80 |
| Length Through Bore | 2.750 in |
| Pressure Angle | 20 degrees |
| Bore Size (in) | 1.125 |
| Diametral Pitch | 8 |
| Weight | 16.95 LB |
| EAN or UPC | 662289266883 |
