- Steel Material
- Minimum Plain Bore Type
description
- Spur gears are designed to transmit motion and power between parallel shafts. Configurations include spur, rack, pinion wire, stem pinions, and internal gears
- most with a selection of bores, keyways, and setscrews. Fine-pitch gears are available in plastic, brass, stainless steel, and steel. Heavier pitch spurs are available in steel and cast iron. Styles include plain, web, web with lightening holes, or spoked. Change gears have consecutive numbers of teeth for a variety of ratios.
features
- Browning Gears are rated in accordance with AGMA standards

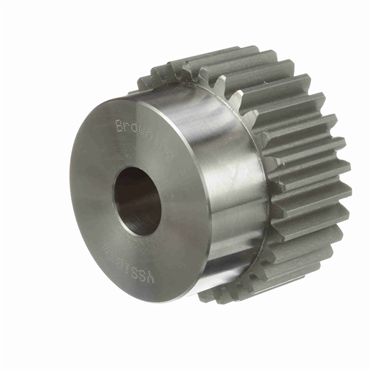

- Browning Minimum Bore Spur Gear
- When you think "Special" Gears - Think Browning
| Face Width (in) | 1.25 |
| Outside Diameter (in) | 3.2 |
| Material | Steel |
| Standards Met | AGMA |
| Hub Projection (in) | 1 |
| Bore (Min) (in) | 0.875 |
| Bore Type | Minimum Plain Bore |
| Pressure Angle | 20 degrees |
| Pitch Diameter | 3 in |
| Hub Diameter (in) | 2.625 |
| Length Through Bore | 2.250 in |
| Pitch Diameter (in) | 3 |
| Number of Teeth/Threads | 30 |
| Diametral Pitch | 10 |
| Bore (Max) (in) | 1.75 |
| Bore Size (in) | 0.875 |
| No. of Teeth | 30 |
| Overall Length (in) | 2.25 |
| Length Through Bore (in) | 2.25 |
| Weight | 3.65 LB |
| EAN or UPC | 662289126576 |
