- Steel Material
- Bushed Bore Type
description

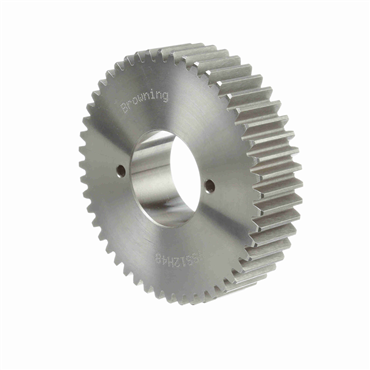

- Spur gears are designed to transmit motion and power between parallel shafts. Configurations include spur, rack, pinion wire, stem pinions, and internal gears
- most with a selection of bores, keyways, and setscrews. Fine-pitch gears are available in plastic, brass, stainless steel, and steel. Heavier pitch spurs are available in steel and cast iron. Styles include plain, web, web with lightening holes, or spoked. Change gears have consecutive numbers of teeth for a variety of ratios.
features
- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think "Special" Gears - Think Browning
| Hub Diameter (in) | 2.5 |
| Material | Steel |
| Diametral Pitch | 12 |
| Length Through Bore (in) | 1.625 |
| Length Through Bore | 1.625 in |
| Overall Length (in) | 1.625 |
| Bore (Min) (in) | 0.375 |
| Pressure Angle | 20 degrees |
| Hub Projection (in) | 0.4375 |
| Bore Type | Bushed Bore |
| No. of Teeth | 48 |
| Standards Met | AGMA |
| Bore Size (in) | 0.375 |
| Face Width (in) | 1 |
| Pitch Diameter (in) | 4 |
| Bore (Max) (in) | 1.5 |
| Pitch Diameter | 4 in |
| Number of Teeth/Threads | 48 |
| Outside Diameter (in) | 4.16 |
| Weight | 2.98 LB |
| EAN or UPC | 662289147601 |
