description
- Spur gears are designed to transmit motion and power between parallel shafts. Configurations include spur, rack, pinion wire, stem pinions, and internal gears
- most with a selection of bores, keyways, and setscrews. Fine-pitch gears are available in plastic, brass, stainless steel, and steel. Heavier pitch spurs are available in steel and cast iron. Styles include plain, web, web with lightening holes, or spoked. Change gears have consecutive numbers of teeth for a variety of ratios.
features

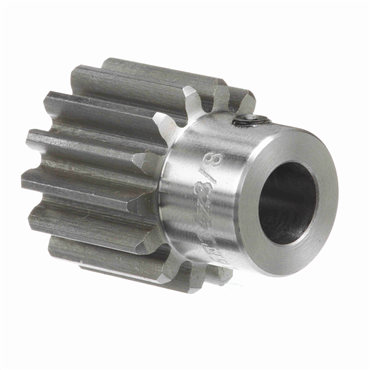

- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think "Special" Gears - Think Browning
| Face Width (in) | 0.75 |
| Hub Diameter (in) | 0.75 |
| Bore (Max) (in) | 0.375 |
| Pitch Diameter (in) | 0.938 |
| Material | Steel |
| Bore Type | Bored to Size |
| Bushing Bore Size (in) | 0.3750 |
| Diametral Pitch | 16 |
| Bore Size (in) | 0.375 |
| Bore (Min) (in) | 0.375 |
| Length Through Bore (in) | 1.25 |
| No. of Teeth | 15 |
| Overall Length (in) | 1.25 |
| Outside Diameter (in) | 1.06 |
| Hub Projection (in) | 0.5 |
| Standards Met | AGMA |
| Pitch Diameter | 0.938 in |
| Length Through Bore | 1.250 in |
| Bore Size | 0.375 in |
| Pressure Angle | 20 degrees |
| Gear Construction | Plain |
| Number of Teeth/Threads | 15 |
| Weight | 0.2 LB |
| EAN or UPC | 662289043026 |
