- Steel Material

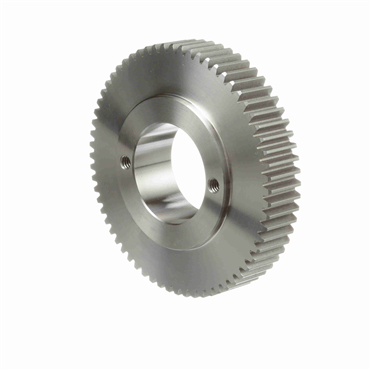

- Bushed Bore Type
description
- Spur gears are designed to transmit motion and power between parallel shafts. Configurations include spur, rack, pinion wire, stem pinions, and internal gears
- most with a selection of bores, keyways, and setscrews. Fine-pitch gears are available in plastic, brass, stainless steel, and steel. Heavier pitch spurs are available in steel and cast iron. Styles include plain, web, web with lightening holes, or spoked. Change gears have consecutive numbers of teeth for a variety of ratios.
features
- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- When you think "Special" Gears - Think Browning
- Browning Gears are rated in accordance with AGMA standards
| Length Through Bore | 1.500 in |
| Diametral Pitch | 16 |
| Bore Size (in) | 0.375 |
| Overall Length (in) | 1.5 |
| Material | Steel |
| Hub Projection (in) | 0.5625 |
| Face Width (in) | 0.75 |
| Pressure Angle | 20 degrees |
| Bore Type | Bushed Bore |
| Standards Met | AGMA |
| Pitch Diameter (in) | 4 |
| Number of Teeth/Threads | 64 |
| Length Through Bore (in) | 1.5 |
| Bore (Min) (in) | 0.375 |
| Hub Diameter (in) | 2.5 |
| Bore (Max) (in) | 1.5 |
| Outside Diameter (in) | 4.12 |
| No. of Teeth | 64 |
| Pitch Diameter | 4 in |
| Weight | 2.34 LB |
| EAN or UPC | 662289117505 |
