CESSWDM3554T

1 1/2 hp 145TC Frame Three Phase AC Motor

Item #101768802

Auto Replenish

each One-time purchase

Alternate Products

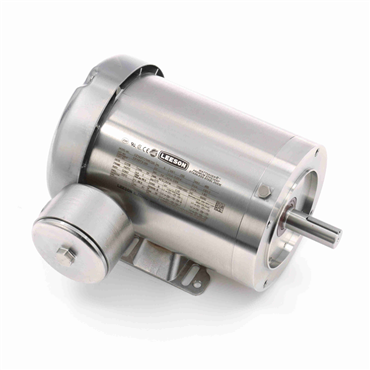

Leeson 121873.00

AC Motor

Item #101434940

each

Compare

Product Details

All external surfaces are 300 series stainless steel
Moisture-resistant insulation system
Four condensation drains in each endplate
Endplate rabbets sealed and conduit box gasketed
Labyrinth seals
IP56 rating: Protected from limited dust ingress and from high pressure water jets from any direction

Specifications

C Dimension	14.3 in
Motor Shaft Size	7/8 in
Poles	4
NEMA Design	B
Mounting	C-Face - With Base
Brake Feature	No
RefPicture	CESS
RPM	1,800 rpm
Frequency	60 Hz
Full Load Pf	81
Frame Size	145TC
Enclosure	TEFC
Full Load Efficiency	86.5 %
Overall Length	13.42 in
HP	1 1/2
Motor Application	Washdown Duty
Motor Shaft Length	2.12 in
Base	Rigid
Drive End Bearing	6205
Open End Bearing	6203
Phase	Three Phase
Shaft Grounding	No
Efficiency	86.5%
End Plate	C-Face
Design	B
VoltCode	E1
Full Load Amps	2
Product Line	RG
Voltage Rating	230/460
Mult. Sym.	L1
Hz	60 Hz
Voltage	230 V, 460 V
Useable at 208V	Yes
Standard	CSA, UR, NEMA
Duty Cycle	Continuous
Shaft Rotation	Reversible
Synchronous	1800 rpm
Washdown Duty	Yes
Efficiency Group	Premium Efficient
Mounting Style	F-1
Service Factor	1.15
Mount Type	F1
Rotation	R
Speed	1770 rpm
Power Factor	72
Shaft Diameter	0.88 in
Insulation Class	F
Multispeed	Single Speed
Full Load rpm	1740 rpm
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Frame Material	Stainless Steel
Full Load Current	4.6/2.3
Inverter Duty	Inverter Ready
Shaft Dia.	0.875 in
Conduit Box Material	Steel
Rated Efficiency	86.5 %
Ambient Temperature	104 °F
Type	3532M
Frame	145TC
Weight	55.0 LB
EAN or UPC	781568503348
