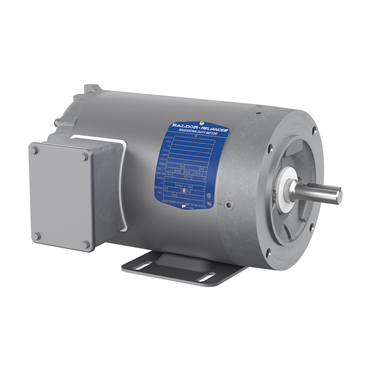

1 hp 56C Frame Three Phase AC Motor

CESWDM3546

1 hp 56C Frame Three Phase AC Motor
Item #101004023
  • TENV Enclosure
  • 1 hp
  • 60 Hz Frequency
  • 56C Frame
1 hp 56C Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • IP55IP55
  • TENV Enclosure
  • 1 hp
  • 60 Hz Frequency
  • 56C Frame

applications

  • Food processing
  • Packaging
  • Outdoor applications

features

  • Moisture-resistant insulation system
  • Sealed ball bearings with moisture-resistant grease
  • Contact lip seals on fan shaft extensions
  • Neoprene gaskets
  • 300 series stainless steel motor frame, base, shaft and hardware
  • No exterior paint
  • Non-contact labyrinth seal or output shaft extension
Enclosure TENV
NEMA Design B
Speed 1770 rpm
Voltage 575 V
Insulation Class F
Service Factor 1.15
Shaft Grounding No
Duty Cycle Continuous
Open End Bearing 6203
Multispeed Single Speed
Useable at 208V Yes
Efficiency Group Premium Efficient
VoltCode E
Overall Length 12.06 in
Full Load rpm 1740 rpm
Mount Type F1
Hz 60 Hz
Shaft Dia. 0.625 in
Frame Material Stainless Steel
RefPicture CSWDM
Type 3524M
Power Factor 66
RPM 1,800 rpm
Poles 4
Brake Feature No
Full Load Current 3.34/1.67
Frequency 60 Hz
End Plate C-Face
Shaft Diameter 0.63 in
Ambient Temperature 104 °F
Design B
Frame 56C
Frame Size 56C
Drive End Bearing 6205
Shaft Rotation Reversible
Product Line RG
Full Load Efficiency 85.5 %
HP 1
Rated Efficiency 85.5 %
Washdown Duty Yes
Mounting C-Face - With Base
Enclosure Designation TENV - Totally Enclosed Non-Ventilated
Rotation R
Motor Application Premium Efficient, Washdown Duty
Standard CSA EEV, NEMA_PREMIUM, UR, NEMA
Synchronous 1800 rpm
Efficiency 85.5%
Full Load Amps 1.4
Conduit Box Material Steel
Mult. Sym. K
Phase Three Phase
Base Rigid
Full Load Pf 81
Inverter Duty Inverter Ready
Voltage Rating 230/460
Mounting Style F-1
Weight 40.0 LB
EAN or UPC 781568490914
