CEWDM3713T

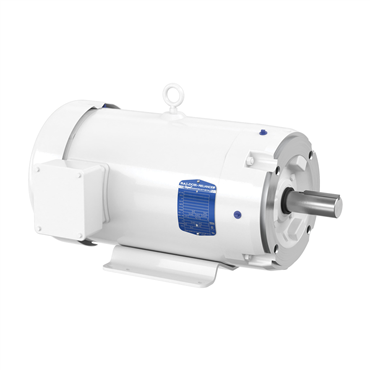

15 hp 215TC Frame Three Phase AC Motor

Item #101004064

Auto Replenish

each One-time purchase

Product Details

Specifications

RefPicture	CEWD
Shaft Dia.	1.375 in
Poles	2
Shaft Diameter	1.38 in
Mounting	C-Face - With Base
Speed	3500 rpm
Full Load Pf	90
Conduit Box Material	Steel
BALD Family Names	Premium Efficient, Washdown Duty, C-Face, Nema Premium™
RPM	3600 rpm
Frame Material	Steel
Frequency	60 Hz
Product Line	RG
Design	A
Mounting Style	F-1
Motor Shaft Size	1 3/8 in
Efficiency	91%
C Dimension	21.26 in
Hz	60 Hz
Phase	Three Phase
Multispeed	Single Speed
Frame Size	215TC
Full Load Amps	16.6
Efficiency Group	Premium Efficient
Standard	CSA EEV, NEMA_PREMIUM, UR, NEMA
Full Load Current	34/17
Inverter Duty	Inverter Ready
Voltage Rating	460, 230
Full Load Efficiency	91 %
Drive End Bearing	6307
Brake Feature	No
Power Factor	89
VoltCode	F
Motor Shaft Length	3.12 in
NEMA Design	A
Shaft Rotation	Reversible
Full Load rpm	3500 rpm
Insulation Class	F
Useable at 208V	No
Overall Length	21.26 in
Rated Efficiency	91 %
Voltage	575 V
Washdown Duty	Yes
Enclosure	TEFC
Mount Type	F1
Duty Cycle	Continuous
Shaft Grounding	No
Service Factor	1.15
Frame	215TC
Mult. Sym.	L1
Rotation	R
HP	15
End Plate	C-Face
Ambient Temperature	104 °F
Motor Application	Washdown Duty
Enclosure Designation	TEFC - Totally Enclosed Fan Cooled
Base	Rigid
Synchronous	3600 rpm
Open End Bearing	6206
Type	3752M
Weight	174.0 LB
EAN or UPC	781568503423
