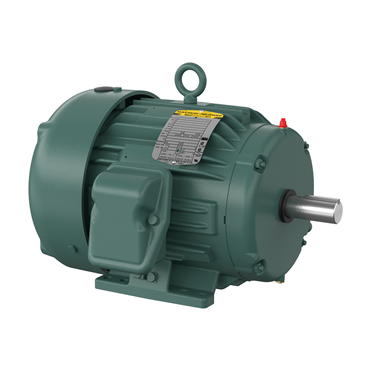

- TEFC Enclosure
- 5 hp
- 60 Hz Frequency
- 184T Frame
description
Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.
features
- Heavy duty cast iron construction
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
| Overall Length | 15.93 in |
| Voltage Rating | 230/460 |
| Mounting | Foot Mounted |
| Base | Rigid |
| Frequency | 60 Hz |
| NEMA Design | A |
| Frame Size | 184T |
| Type | AC Motor |
| Shaft Dia. | 1.125 in |
| Phase | Three Phase |
| Service Factor | 1.15 |
| Standard | CCSA US, CSA EEV, NEMA_PREMIUM, UR, NEMA |
| Speed | 3490 rpm |
| End Plate | Standard |
| Rated Efficiency | 90.2 % |
| Multispeed | Single Speed |
| Inverter Duty | Inverter Duty |
| Duty Cycle | Continuous |
| Speed [Max] | 5400 |
| Poles | 2 |
| Insulation Class | F |
| HP [Min] | 5 |
| Ambient Temperature | 104 °F |
| Frame Material | Iron |
| Full Load Current | 11.4/5.7 |
| Enclosure | TEFC |
| Voltage | 575 V |
| Power Factor | 90 |
| Mount Type | F1 |
| HP | 5 |
| Efficiency | 90.2% |
| Shaft Grounding | No |
| Shaft Rotation | Reversible |
| Synchronous | 3600 rpm |
| RPM | 3600 rpm |
| Conduit Box Material | Cast Iron |
| Frame | 184T |
| Shaft Diameter | 1.13 in |
| Motor Application | Severe Duty |
| Model | XEX |
| Weight | 114.0 LB |
| EAN or UPC | 781568479070 |
