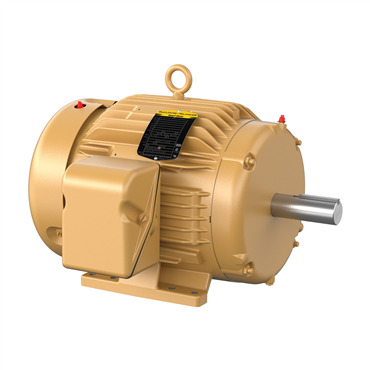

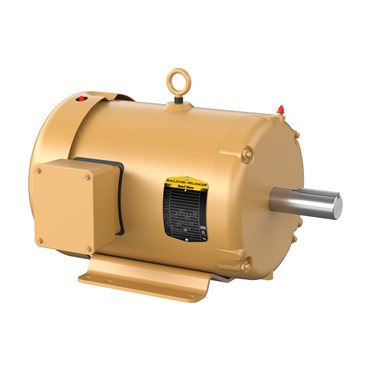

3 hp 213T Frame Three Phase AC Motor

ECP3764T-4

3 hp 213T Frame Three Phase AC Motor
Item #101003523
  • TEFC Enclosure
  • 3 hp
  • 60 Hz Frequency
  • 213T Frame
3 hp 213T Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • NEMA PremiumNEMA Premium
  • TEFC Enclosure
  • 3 hp
  • 60 Hz Frequency
  • 213T Frame

description

  • Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.

applications

  • Tropical climates
  • Petro-chemical plants
  • Mines
  • Foundries
  • Pulp and Paper plants
  • Waste management facilities
  • Chemical plants

features

  • Heavy duty cast iron construction
  • Premium efficient electrical designs
  • Enhanced ingress protection
  • Corrosion resistant epoxy finish

caution

  • Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
Frame Material Iron
Model XEX
Full Load rpm 1160 rpm
Base Rigid
Motor Shaft Size 1 3/8 in
Open End Bearing 6206
RefPicture ECP03
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
Mounting Style F-1
Insulation Class F
Washdown Duty No
NEMA Design B
HP 3
Drive End Bearing 6307
Rotation R
Efficiency 89.5%
Speed 1165 rpm
Substitute Motor CP3764T-4
Frame Size 213T
Mounting Foot Mounted
Shaft Dia. 1.375 in
Epact Nominal Full Load Efficiency 87.5 %
Rated Efficiency 89.5 %
Design B
RPM 1200 rpm
Phase Three Phase
Inverter Duty Inverter Duty
Hz 60 Hz
C Dimension 19.32 in
Voltage Rating 460
Efficiency Group Standard Efficient
Standard CCSA US, CSA EEV, NEMA_PREMIUM, UR, NEMA
Frequency 60 Hz
C Face Kit 37-1304
VoltCode G
Motor Application Severe Duty
Enclosure TEFC
Full Load Current 4.5
Frame 213T
Power Factor 70
Conduit Box Material Cast Iron
Synchronous 1200 rpm
Overall Length 19.49 in
Shaft Grounding No
Brake Feature No
Mount Type F1
Mult. Sym. L1
Full Load Efficiency 89.5 %
HP [Min] 3
End Plate Standard
Product Line RG
Motor Shaft Length 3 3/8 in
Shaft Diameter 1.38 in
Full Load Amps 5
Shaft Rotation Reversible
BALD Family Names Premium Efficient, Nema Premium™, Severe Duty
Full Load Pf 64
Type 0736M
Ambient Temperature 104 °F
Poles 6
Speed [Max] 1800
Voltage 230 V, 460 V
Multispeed Single Speed
Useable at 208V No
Service Factor 1.15
Duty Cycle Continuous
Weight 209.0 LB
EAN or UPC 781568136621
