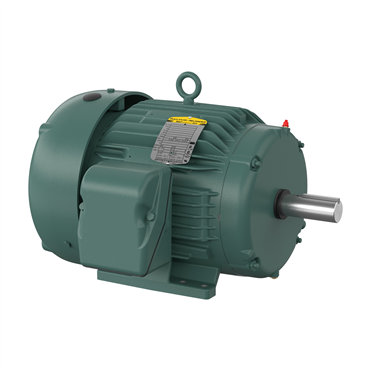

- TEFC Enclosure
- 7 1/2 hp
- 60 Hz Frequency
- 213T Frame
description
Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.
features
- Heavy duty cast iron construction
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
| Full Load Current | 17.2/8.6 |
| Multispeed | Single Speed |
| Service Factor | 1.15 |
| Shaft Rotation | Reversible |
| HP [Min] | 7 1/2 |
| Standard | CCSA US, CSA EEV, NEMA_PREMIUM, UR, NEMA |
| NEMA Design | B |
| Rated Efficiency | 91 % |
| End Plate | Standard |
| Shaft Diameter | 1.38 in |
| Frame Size | 213T |
| Phase | Three Phase |
| Frame | 213T |
| Type | AC Motor |
| Power Factor | 88 |
| Inverter Duty | Inverter Ready |
| Base | Rigid |
| Insulation Class | F |
| Shaft Dia. | 1.375 in |
| Ambient Temperature | 104 °F |
| HP | 7 1/2 |
| Voltage Rating | 230/460 |
| Motor Application | Severe Duty |
| Frequency | 60 Hz |
| Voltage | 575 V |
| Conduit Box Material | Cast Iron |
| Enclosure | TEFC |
| Efficiency | 91% |
| Mounting | Foot Mounted |
| Poles | 2 |
| Speed [Max] | 5400 |
| Overall Length | 19.5 in |
| Duty Cycle | Continuous |
| Speed | 3510 rpm |
| Frame Material | Iron |
| Mount Type | F1 |
| Synchronous | 3600 rpm |
| Model | XEX |
| RPM | 3600 rpm |
| Shaft Grounding | No |
| Weight | 169.0 LB |
| EAN or UPC | 781568479087 |
