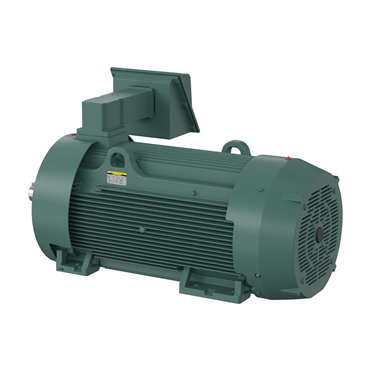

- TEFC Enclosure
- 300 hp
- 60 Hz Frequency
- L449T Frame
description
Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.
features
- Heavy duty cast iron construction
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
| Phase | Three Phase |
| Insulation Class | F |
| Enclosure | TEFC |
| Multispeed | Single Speed |
| Shaft Grounding | No |
| Service Factor | 1.15 |
| NEMA Design | B |
| HP | 300 |
| Overall Length | 60.13 in |
| Frame Material | Iron |
| HP [Min] | 300 |
| Poles | 6 |
| Rated Efficiency | 95.8 % |
| Speed | 1190 rpm |
| Ambient Temperature | 104 °F |
| Full Load Current | 340 |
| Frame Size | L449T |
| Voltage | 460 V |
| Type | AC Motor |
| Model | XEX |
| Synchronous | 1200 rpm |
| Shaft Diameter | 3.38 in |
| Duty Cycle | Continuous |
| Mount Type | F1 |
| Voltage Rating | 460 |
| Frame | L449T |
| End Plate | Standard |
| Inverter Duty | Inverter Ready |
| Motor Application | Severe Duty |
| Frequency | 60 Hz |
| Shaft Rotation | Reversible |
| Standard | CCSAUSEEV, NEMA |
| Shaft Dia. | 3.375 in |
| Power Factor | 86 |
| Base | Rigid |
| RPM | 1200 rpm |
| Efficiency | 95.8% |
| Mounting | Foot Mounted |
| Weight | 3125.0 LB |
| EAN or UPC | 781568680933 |
