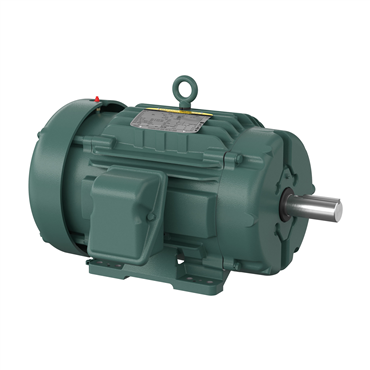

- TEFC Enclosure
- 20 hp
- 60 Hz Frequency
- 256T Frame
description
Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.
applications
- Petro-chemical plants
- Mines
- Pulp and Paper plants
- Chemical plants
features
- Heavy duty cast iron construction
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
caution
- Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
| Brake Feature | No |
| Insulation Class | F |
| Useable at 208V | No |
| VoltCode | G |
| NEMA Design | B |
| Motor Shaft Size | 1 5/8 in |
| Efficiency | 91% |
| C Dimension | 25 1/2 in |
| Full Load Current | 22 |
| Inverter Duty | Inverter Duty |
| Poles | 2 |
| Rated Efficiency | 91 % |
| Duty Cycle | Continuous |
| Voltage | 575 V |
| RPM | 3600 rpm |
| Multispeed | Single Speed |
| Ambient Temperature | 104 °F |
| RefPicture | ECP03 |
| Standard | CCSA US, CSA EEV, NEMA_PREMIUM, UR, NEMA |
| Hz | 60 Hz |
| Washdown Duty | No |
| Full Load Efficiency | 92.4 % |
| Model | 841 XL |
| Frame Material | Iron |
| Product Line | RG |
| Frame Size | 256T |
| Mounting | Foot Mounted |
| Speed | 3510 rpm |
| Phase | Three Phase |
| Frame | 256T |
| Enclosure Designation | TEFC - Totally Enclosed Fan Cooled |
| C Face Kit | 09-1309 |
| Conduit Box Material | Cast Iron |
| Epact Nominal Full Load Efficiency | 90.2 % |
| Type | 0944M |
| Mounting Style | F-1 |
| Shaft Grounding | No |
| Frequency | 60 Hz |
| Shaft Rotation | Reversible |
| Voltage Rating | 460 |
| Speed [Max] | 5400 |
| Base | Rigid |
| Efficiency Group | Standard Efficient |
| Service Factor | 1.15 |
| Overall Length | 24.78 in |
| IP Rating | IP56 |
| Full Load Pf | 89 |
| Rotation | R |
| Synchronous | 3600 rpm |
| Power Factor | 91 |
| Mount Type | F1 |
| End Plate | Standard |
| Full Load Amps | 23 |
| Mult. Sym. | L1 |
| BALD Family Names | Premium Efficient, Nema Premium™, Severe Duty |
| Motor Application | Severe Duty |
| HP [Min] | 20 |
| Full Load rpm | 3540 rpm |
| Shaft Diameter | 1.63 in |
| Design | A |
| Motor Shaft Length | 4 in |
| Open End Bearing | 6208 |
| HP | 20 |
| Drive End Bearing | 6309 |
| Enclosure | TEFC |
| Shaft Dia. | 1.625 in |
| Weight | 305.0 LB |
| EAN or UPC | 781568211069 |
-
