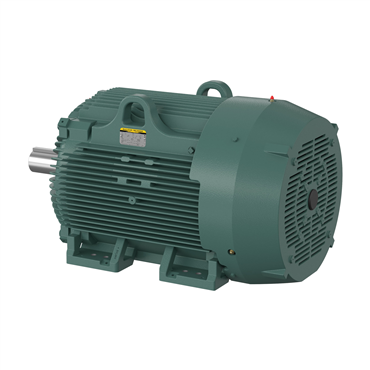

- TEFC Enclosure
- 125 hp
- 60 Hz Frequency
- 444T Frame
description
Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.
applications
- Chemical plants
- Petro-chemical plants
- Mines
- Pulp and Paper plants
features
- Heavy duty cast iron construction
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
caution
- Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
| Frame | 444T |
| Duty Cycle | Continuous |
| Shaft Rotation | Phase Seq-Std Rot (CCWODE) |
| IP Rating | IP56 |
| Design | B |
| Motor Application | Severe Duty |
| Mounting | Foot Mounted |
| Product Line | RG |
| Base | Rigid |
| Motor Shaft Length | 8 1/2 in |
| Overall Length | 44.97 in |
| Efficiency | 95.4% |
| Rated Efficiency | 95.4 % |
| Speed | 1785 rpm |
| NEMA Design | B |
| RPM | 1800 rpm |
| Frame Size | 444T |
| Drive End Bearing | 6319 |
| Frequency | 60 Hz |
| Mount Type | F1 |
| C Face Kit | 18-1302 |
| Service Factor | 1.15 |
| HP | 125 |
| Shaft Dia. | 3.375 in |
| Full Load Current | 144 |
| Standard | CCSA US, UR, NEMA |
| Useable at 208V | No |
| Model | 841 XL |
| Insulation Class | F |
| Open End Bearing | 6314 |
| Mounting Style | F-1 |
| Epact Nominal Full Load Efficiency | 94.5 % |
| C Dimension | 44.24 in |
| Hz | 60 Hz |
| Inverter Duty | Inverter Ready |
| Voltage Rating | 460 |
| VoltCode | G |
| Ambient Temperature | 104 °F |
| Voltage | 460 V |
| Mult. Sym. | D3 |
| Rotation | R |
| Motor Shaft Size | 3 3/8 in |
| RefPicture | CRUSH |
| Shaft Diameter | 3.38 in |
| End Plate | Standard |
| Multispeed | Single Speed |
| Washdown Duty | No |
| HP [Min] | 125 |
| Poles | 4 |
| Shaft Grounding | No |
| Phase | Three Phase |
| Enclosure | TEFC |
| Full Load Amps | 139 |
| Full Load Efficiency | 95.4 % |
| Frame Material | Iron |
| Brake Feature | No |
| Enclosure Designation | TEFC - Totally Enclosed Fan Cooled |
| Synchronous | 1800 rpm |
| Full Load rpm | 1780 rpm |
| Efficiency Group | Standard Efficient |
| Power Factor | 85 |
| Type | 1876M |
| Full Load Pf | 88 |
| BALD Family Names | Premium Efficient, Nema Premium™, Severe Duty |
| Weight | 2005.0 LB |
| EAN or UPC | 781568196694 |
-
