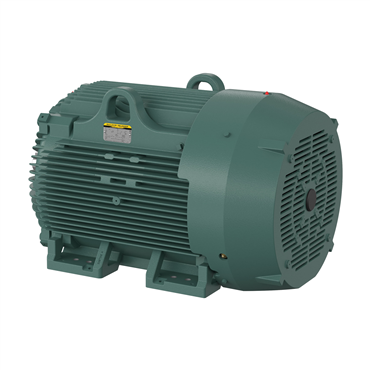

- TEFC Enclosure
- 125 hp
- 60 Hz Frequency
- 444TS Frame
description
Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.
applications
- Petro-chemical plants
- Mines
- Pulp and Paper plants
- Chemical plants
features
- Heavy duty cast iron construction
- Premium efficient electrical designs
- Enhanced ingress protection
- Corrosion resistant epoxy finish
caution
- Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
| Frequency | 60 Hz |
| Frame Material | Iron |
| Shaft Dia. | 2.375 in |
| Enclosure | TEFC |
| C Dimension | 40 1/2 in |
| BALD Family Names | Premium Efficient, Nema Premium™, Severe Duty |
| RefPicture | CRUSH |
| Mounting Style | F-1 |
| Full Load Efficiency | 95.4 % |
| Shaft Diameter | 2.38 in |
| Full Load Current | 137 |
| Frame Size | 444TS |
| HP [Min] | 125 |
| Motor Shaft Size | 2 3/8 in |
| Mult. Sym. | D3 |
| Rotation | R |
| Mounting | Foot Mounted |
| Ambient Temperature | 104 °F |
| Frame | 444TS |
| Hz | 60 Hz |
| Epact Nominal Full Load Efficiency | 94.5 % |
| Inverter Duty | Inverter Duty |
| Shaft Grounding | No |
| IP Rating | IP56 |
| HP | 125 |
| Insulation Class | F |
| Full Load Pf | 90 |
| Poles | 2 |
| Motor Application | Severe Duty |
| Type | 1852M |
| Efficiency | 95% |
| Useable at 208V | No |
| Power Factor | 89 |
| Multispeed | Single Speed |
| Base | Rigid |
| Motor Shaft Length | 4 3/4 in |
| Design | B |
| NEMA Design | B |
| Shaft Rotation | Phase Seq-Std Rot (CCWODE) |
| Washdown Duty | No |
| Model | 841 XL |
| Enclosure Designation | TEFC - Totally Enclosed Fan Cooled |
| Brake Feature | No |
| Synchronous | 3600 rpm |
| Open End Bearing | 6314 |
| Product Line | RG |
| Efficiency Group | Standard Efficient |
| Standard | CCSA US, UR, NEMA |
| RPM | 3600 rpm |
| Duty Cycle | Continuous |
| VoltCode | G |
| Mount Type | F1 |
| Voltage Rating | 460 |
| Rated Efficiency | 95 % |
| Service Factor | 1.15 |
| Phase | Three Phase |
| End Plate | Standard |
| Voltage | 460 V |
| Overall Length | 41.22 in |
| Full Load rpm | 3570 rpm |
| Drive End Bearing | 6314 |
| Full Load Amps | 136 |
| Speed | 3570 rpm |
| Weight | 1915.001 LB |
| EAN or UPC | 781568295687 |
-
