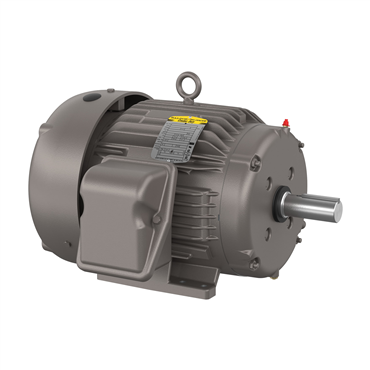

7 1/2 hp 213T Frame Three Phase AC Motor

ECR9074T

7 1/2 hp 213T Frame Three Phase AC Motor
Item #111453557
  • TEFC Enclosure
  • 7 1/2 hp
  • 60 Hz Frequency
  • 213T Frame
7 1/2 hp 213T Frame Three Phase AC Motor
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • TEFC Enclosure
  • 7 1/2 hp
  • 60 Hz Frequency
  • 213T Frame

description

  • Baldor-Reliance® severe duty motors include features designed to protect against contamination, moisture, vibration and corrosion. These motors use Super-E® premium efficient electrical designs which are built to handle demanding duty cycles, provide high starting and peak torques, and operate over wide speed ranges. Severe Duty motors provide safe, long operating life, reliable performance, and reduced energy consumption in the toughest applications.

features

  • Heavy duty cast iron construction
  • Premium efficient electrical designs
  • Enhanced ingress protection
  • Corrosion resistant epoxy finish
Phase Three Phase
HP 7 1/2
End Plate Standard
Enclosure Designation TEFC - Totally Enclosed Fan Cooled
Poles 4
Speed [Max] 2700
Mounting Foot Mounted
Design C
Speed 1760 rpm
Service Factor 1.25
Shaft Dia. 1.375 in
Model Crusher Duty
Voltage Rating 230/460
Duty Cycle Continuous
Overall Length 19.58 in
Torque Rating 22.1 ft lb
Rated Efficiency 91.7 %
Base Rigid
Hz 60 Hz
Efficiency 91.7%
Multispeed Single Speed
Efficiency Group Standard Efficient
Type AC Motor
Enclosure TEFC
Frame 213T
Shaft Rotation Reversible
Shaft Grounding No
Ambient Temperature 104 °F
Standard CCSA US, CSA EEV, NEMA_PREMIUM, UR, NEMA
Frequency 60 Hz
Epact Nominal Full Load Efficiency 91.7 %
Bearing Type Oversized Ball Bearing
Mount Type F1
Full Load Amps 9.3
RPM 1800 rpm
Motor Application Severe Duty
Useable at 208V No
Voltage 230 V, 460 V
NEMA Design A
Frame Size 213T
Frame Material Iron
BALD Family Names Severe Duty
Shaft Diameter 1.38 in
Insulation Class F
Power Factor 72
Brake Feature No
Full Load Current 21/10.5
HP [Min] 7 1/2
Inverter Duty Inverter Duty
Synchronous 1800 rpm
Conduit Box Material Cast Iron
Weight 231.0 LB
EAN or UPC 781568777749
